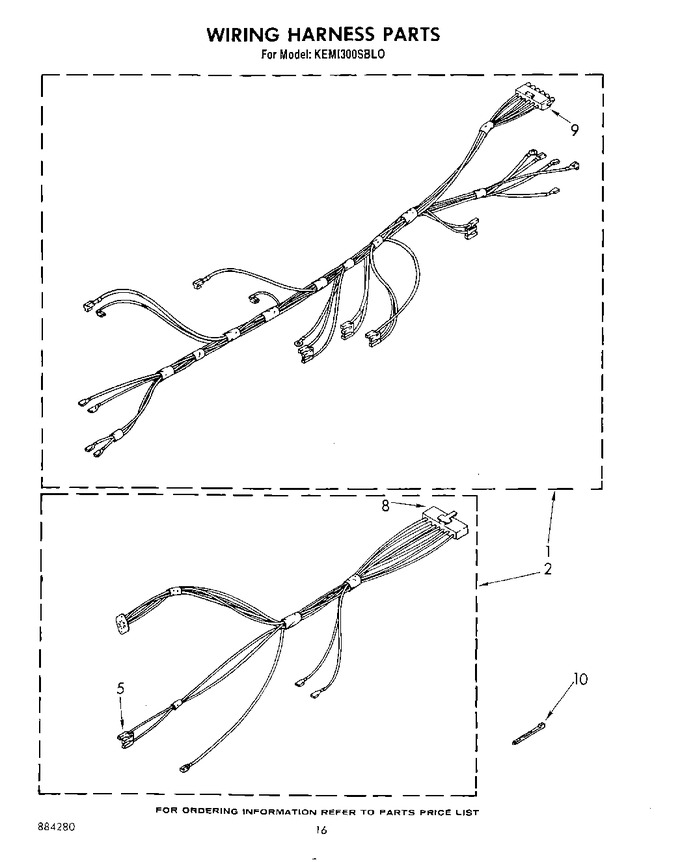

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147554		Harness, Wiring (main)		Appelez-nous	-
1	246135		Screw, 8d X 5/16		Appelez-nous	-
2	3147559		Harness, Wiring (control)		Appelez-nous	-
5	310241		Housing		Appelez-nous	-
8	308565		Housing, Connector		Appelez-nous	-
9	311575		Connector		Appelez-nous	-
10	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
10	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
10	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
10	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
10	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
10	242831		Wire (14 Ga. 200 C Red)				$ 342.23
10	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
10	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
10	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
10	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
10	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
10	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
10	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
10	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
10	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
10	350942		Primer (white)   (Replaces: 206922)				$ 80.69
10	206925		Leveler, Enamel		Appelez-nous	-
10	261890		Harvest Gold		Appelez-nous	-
10	285365		Toast		Appelez-nous	-
10	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
10	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
10	350930		White   (Replaces: 799343)			Immediately	$ 34.39
10	261900		Citrine White (5 Oz.)				$ 51.34
10	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
10	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
10	261891		Harvest Gold		Appelez-nous	-
10	978883		Almond		Appelez-nous	-
10	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
10	285368		Platinum		Appelez-nous	-
10	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
10	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
10	261582		Grease		Appelez-nous	-
10	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
10	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
10	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
10	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
10	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
10	310878		Rack, Meat (micro)		Appelez-nous	-
10	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
10	307677		Browning Tray (micro)		Appelez-nous	-
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
10	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
10	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
10	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
10	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
10	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
10	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	LIT3147419		Use & Care Guide		Appelez-nous	-
	LIT884280		List, Repair Parts		Appelez-nous	-
	LIT3147469		Book, Cooking Guide		Appelez-nous	-
	LIT3147005		Cookbook, Microwave		Appelez-nous	-
	LIT3147420		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3147967		Tech Sheet		Appelez-nous	-
	LIT3147382		Installation Instructions		Appelez-nous	-
