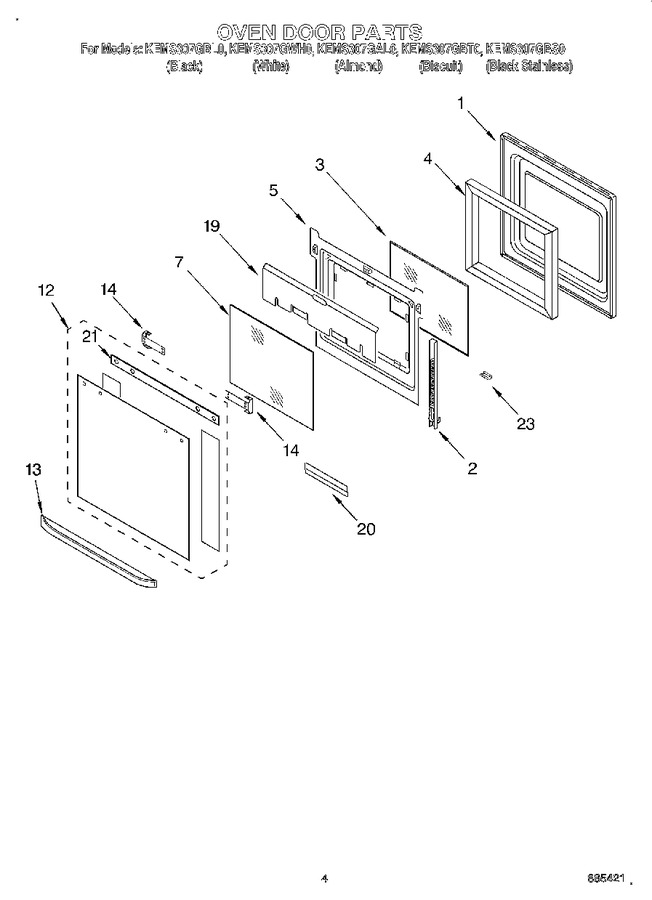

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455524		Hinge, Door   (Replaces: 4454947)			Immediately	$ 61.08
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	WP4455525		Hinge, Door (for Black - Stainless Mdl)   (Replaces: 4454948)			Immediately	$ 69.96
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451671		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452078		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	4452147		Door Glass, Assy (biscuit Model)		Appelez-nous	-
12	4452076		Door Glass, Assy (almond Model)		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448414		Door Handle (black)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
13	4448416		Handle, Door (almond Model)		Appelez-nous	-
13	4452129		Handle, Door (biscuit)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass		Appelez-nous	-
21	4451674		Seal, Door Top		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4450865		Retainer, Glass-clip (almond)		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
