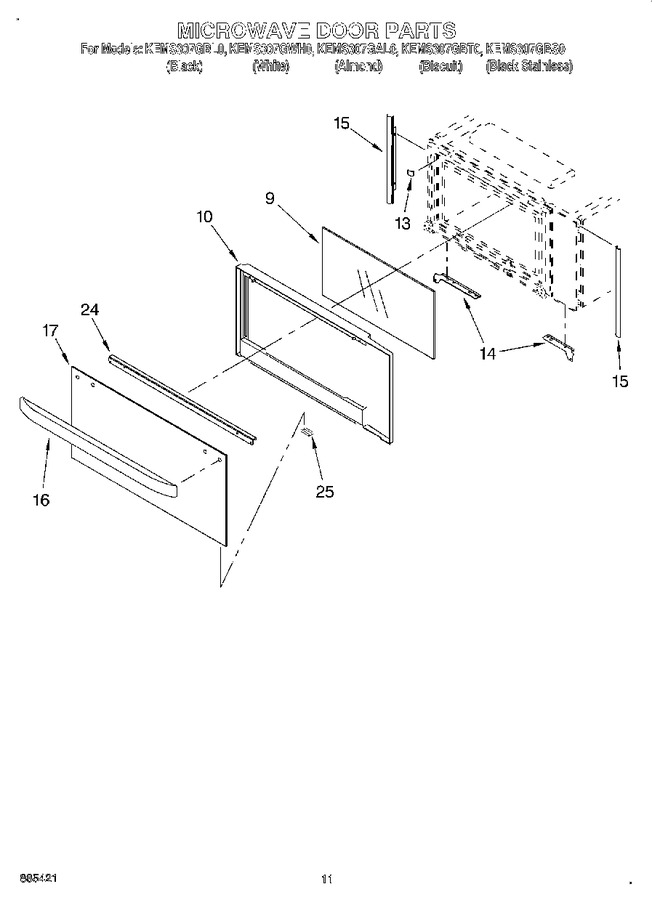

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 4448937 | Glass, Middle |
|
$ 66.02 | |||||
| 10 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 10 | WP8303556 | Frame, Door (Replaces: 4450946) |
|
$ 238.92 | |||||
| 13 | 4450265 | Tape, Foam |
|
- | |||||
| 14 | WP4449809 | Bracket, Mounting (screw) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 14 | 4449142 | Bracket, Mounting (left Side) |
|
$ 52.12 | |||||
| 14 | 4449141 | Bracket, Mounting (right Side) |
|
$ 31.33 | |||||
| 15 | 4449086 | Filler, Side (left) |
|
$ 36.10 | |||||
| 15 | 4449083 | Filler, Side (right Side) |
|
$ 36.44 | |||||
| 15 | WP4449809 | Filler, Side (screw) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 16 | 4448415 | Handle, Door (white Model) |
|
- | |||||
| 16 | 4448414 | Handle, Door (black) |
|
- | |||||
| 16 | 4448416 | Handle, Door (almond Model) |
|
- | |||||
| 16 | 4452129 | Handle, Door (biscuit) |
|
- | |||||
| 17 | 4449137 | Glass, Outer (white Model) |
|
- | |||||
| 17 | 4452149 | Glass, Outer (biscuit) |
|
- | |||||
| 17 | 4451591 | Glass, Outer (black-stainless) |
|
- | |||||
| 17 | 4449136 | Glass, Outer (black Model) |
|
- | |||||
| 17 | 4449138 | Glass, Outer (almond Model) |
|
- | |||||
| 24 | W10276642 | Screw (Replaces: 4451040) |
|
$ 5.49 | |||||
| 24 | 4452331 | Bracket, Handle |
|
$ 48.67 | |||||
| 25 | 814381 | Hinge Pin Kit |
|
$ 7.73 | |||||
| 25 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 25 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 25 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 25 | 4450863 | Retainer, Glass-clip (black) |
|
- | |||||
| 25 | 4450864 | Retainer, Glass-clip (white) |
|
- | |||||
| 25 | 4450865 | Retainer, Glass-clip (almond) |
|
- | |||||
| 25 | 4452119 | Retainer, Glass-clip (biscuit) |
|
- | |||||
| 25 | WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | |||||
| 25 | 4392899 | Biscuit |
|
Immediately | $ 23.81 | ||||
| 25 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 25 | 261900 | Citrine White |
|
$ 51.34 | |||||
| 25 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 25 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 25 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 25 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 25 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 25 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 25 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 25 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 25 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 25 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 25 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 25 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 25 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 25 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 25 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 25 | 4378944 | Filler Kit (bl) |
|
$ 468.78 | |||||
| 25 | 4378945 | Filler Kit (wh) |
|
- | |||||
| 25 | 4378946 | Filler Kit (al) |
|
- | |||||
| 25 | 4452239 | Harness, Latch |
|
- | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 25 | 4454929 | Harness, Main |
|
- | |||||
| 25 | 4450831 | Ground (m/w) |
|
$ 7.43 | |||||
| 25 | 4450800 | Screw, Ground |
|
$ 11.55 | |||||
| 25 | 4450950 | Conduit, Combo |
|
- | |||||
| 25 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| 25 | 4452222 | Spacer, Harness |
|
- | |||||
| 25 | WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 7.11 | |||||
| 25 | WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 |
