Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

1 4450378 Cover, Top Appelez-nous -
2 489392 Screw   (Replaces: 1180485) Special Order $ 12.02

2 4448935 Baffle, Blower Appelez-nous -
3 4450920 Blower Appelez-nous -
3 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

4 4451789 Plate, Mounting Appelez-nous -
5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

5 WP9760588 Transformer, (lights)   (Replaces: 6610122) Special Order $ 237.07

6 4451634 Duct, Exhaust Appelez-nous -
7 4450027 Bracket, Duct Appelez-nous -
8 4449964 Grommet Appelez-nous -
8 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 WP112432 Nut   (Replaces: 112432) Special Order $ 7.16

9 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

9 4454949 Holder, Fuse Special Order $ 81.63

10 WPW10017410 Fuse   (Replaces: 4454976) In-Stock Immediately $ 19.05

11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

11 WP3387230 Screw   (Replaces: 3196181) In-Stock Immediately $ 7.69

12 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

12 4450401 Side, Combo Appelez-nous -
13 4449767 Vent, (control Panel) Appelez-nous -
13 WP4450038 Screw   (Replaces: 4450038) Special Order $ 6.84

14 WP4449809 Side, Control Top (screw)   (Replaces: 4449809) In-Stock Immediately $ 6.47

14 W10755214 Side, Control Top (right)   (Replaces: 4451597) Appelez-nous -
14 W10790240 Side, Control Top (left)   (Replaces: 4451598) Special Order $ 67.21

15 4452244 Back, Control Appelez-nous -
15 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

16 4450551 Cover, Top Rear Appelez-nous -
16 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

17 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

17 4448664 Clamp Special Order $ 18.35

18 WP4452367 Cover, Top Front   (Replaces: 4450554) Special Order $ 68.53

18 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

19 4455038 Transformer, Control Panel Appelez-nous -
20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

20 4452247 Plate, Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

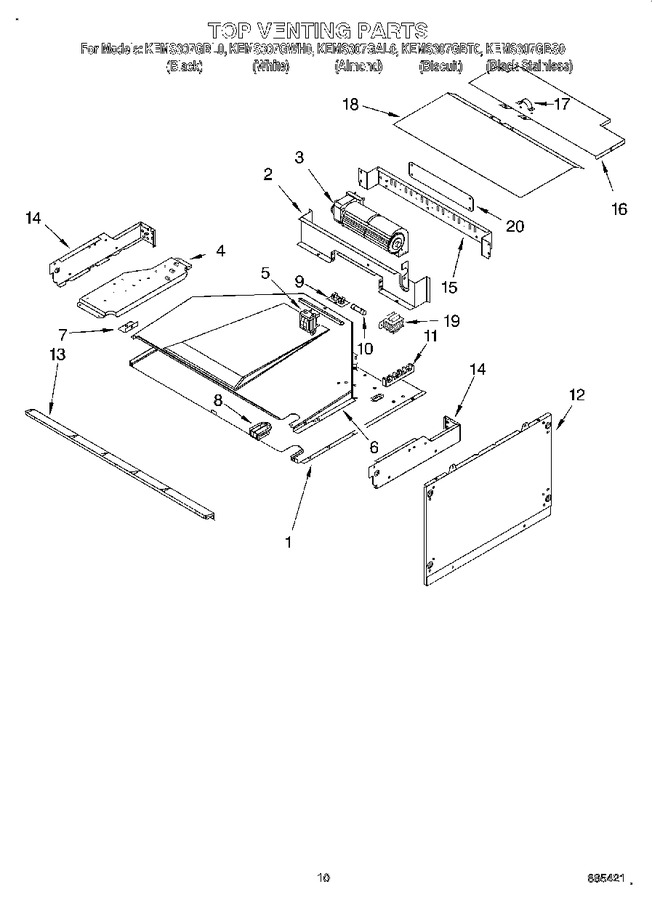

Diagram for KEMS307GWH0
