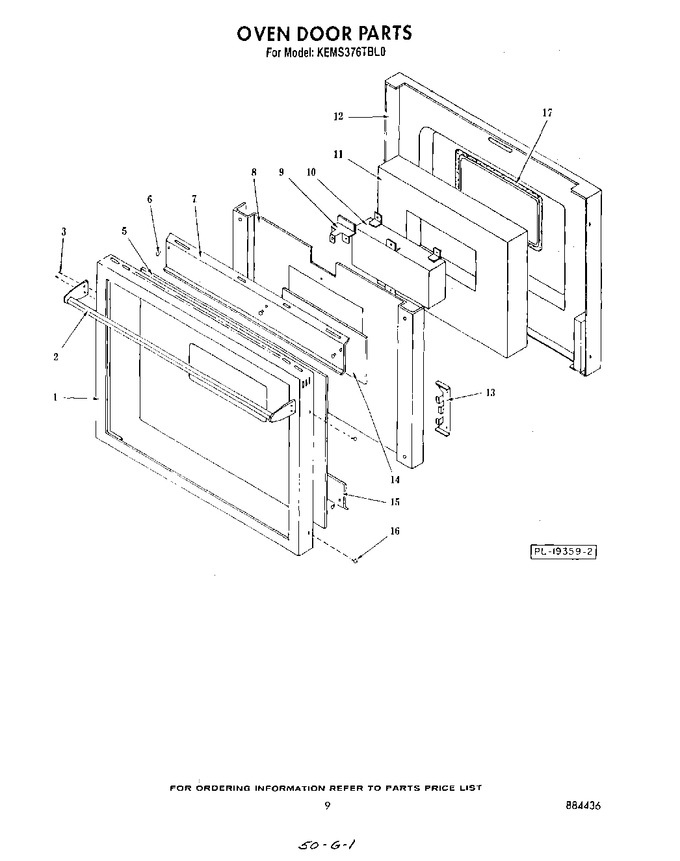

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4164391		Door Frame (black)		Appelez-nous	-
1	4173432		Door Frame (white)		Appelez-nous	-
1	4173433		Door Frame (almond)		Appelez-nous	-
2	4173018		Door Handle (black)		Appelez-nous	-
2	4173435		Door Handle (almond)		Appelez-nous	-
2	4173434		Door Handle (white)		Appelez-nous	-
3	4159330		Screw, No.8-32 X 3/8``		Appelez-nous	-
5	3179697		Door Glass (almond)		Appelez-nous	-
5	3179698		Door Glass (white)		Appelez-nous	-
5	4164241		Door Glass (black)		Appelez-nous	-
6	4168826		Rubber Bumper		Appelez-nous	-
7	4163857		Air Baffle		Appelez-nous	-
8	4169357		Retainer, Insulation		Appelez-nous	-
9	4163852		Bracket, Lock		Appelez-nous	-
10	4164235		Window Package		Appelez-nous	-
10	4159465		Screw		Appelez-nous	-
11	4163987		Insulation		Appelez-nous	-
12	3178761		Door Liner		Appelez-nous	-
13	4163855		Glass Mounting Bracket		Appelez-nous	-
13	4159465		Screw (4)		Appelez-nous	-
14	4164243		Glass Panel		Appelez-nous	-
15	4163859		Air Baffle, Bottom		Appelez-nous	-
16	4168863		Screw, 8a X 3/8``		Appelez-nous	-
17	4159330		Screw		Appelez-nous	-
17	3178584		Gasket, Window		Appelez-nous	-
