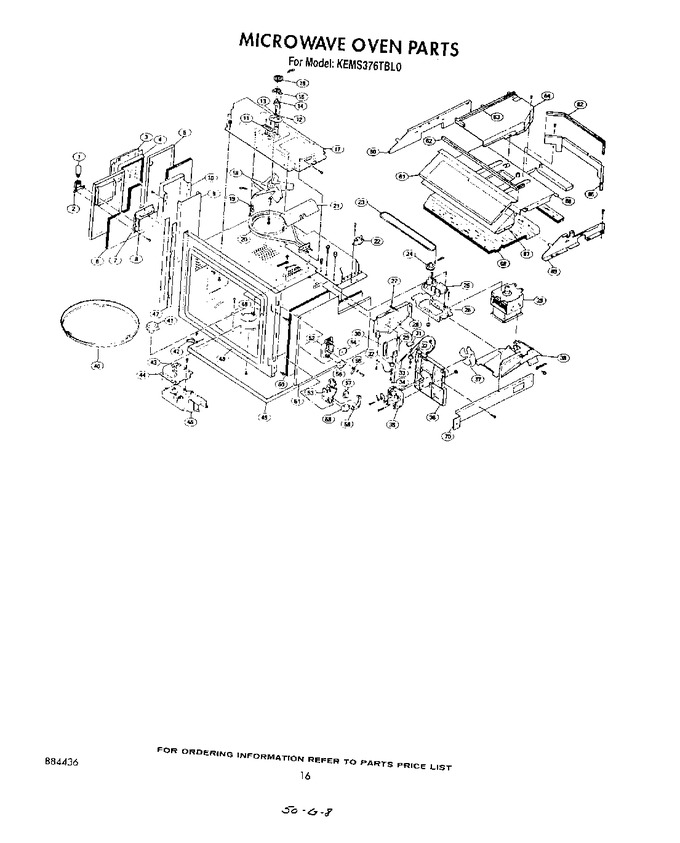

12 - Microwave Oven


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPA3073101		Bulb, Oven Light (30 Watt)   (Replaces: 4164470)			Immediately	$ 10.90
2	4164606		Screw, Oven Light Socket Mounting		Appelez-nous	-
2	4164469		Socket, Oven Light		Appelez-nous	-
3	4164611		Cover, Insulation		Appelez-nous	-
4	4164475		Insulation, Convection Air Duck		Appelez-nous	-
5	4164479		Inner Cabinet Side, Left		Appelez-nous	-
6	4164473		Insulation, Left Side		Appelez-nous	-
7	4164467		Oven Light Mounting Plate		Appelez-nous	-
7	4164539		Screw, Oven Light Mounting (2)		Appelez-nous	-
8	4164468		Glass, Oven Light		Appelez-nous	-
9	4164449		Convection Airguide, Front		Appelez-nous	-
10	4164607		Screw, Insulation Cover (16)		Appelez-nous	-
10	4164450		Convection Air Guide, Rear		Appelez-nous	-
11	4164574		Screw, Thermistor Mounting (2)		Appelez-nous	-
11	4164508		Thermistor		Appelez-nous	-
12	4164539		Screw, Mounting Plate Mounting (3)		Appelez-nous	-
12	4164452		Lower Shaft And Mounting Plate		Appelez-nous	-
13	4164472		Shading Cushion		Appelez-nous	-
14	4164451		Convection Fan Blade Shaft		Appelez-nous	-
15	4164539		Screw, Shaft Mounting Plate Mounting (3)		Appelez-nous	-
15	4164453		Upper Shaft Mounting Plate		Appelez-nous	-
16	4164541		Pin, Fan & Pulley		Appelez-nous	-
16	4164456		Pulley Fan Shaft		Appelez-nous	-
17	4164543		Nut, Convection Airguide, Top, Mounting		Appelez-nous	-
17	4164545		Screw, Convection Airguide, Top Mounting (6)		Appelez-nous	-
17	4164457		Convection Airguide, Top		Appelez-nous	-
18	4164540		Nut, Convection Fan Mounting		Appelez-nous	-
18	4164541		Pin, Fan & Pulley		Appelez-nous	-
18	4164455		Convection Fan Blade		Appelez-nous	-
18	4164542		Washer, Convection Fan Mounting		Appelez-nous	-
19	4164608		Heating Element Holder		Appelez-nous	-
19	4164538		Screw, Element Holder Mounting		Appelez-nous	-
20	4164539		Screw, Element Mounting		Appelez-nous	-
20	4164459		Element, Convection Air		Appelez-nous	-
21	4164538		Screw, End Cap Mounting (2)		Appelez-nous	-
21	4164458		Convection Airguide End Cap		Appelez-nous	-
22	4173087		Screw, Temperature Fuse Mounting (2)		Appelez-nous	-
22	4164512		Fuse, Magnetron Temperature		Appelez-nous	-
23	4164517		Belt, Convection Fan		Appelez-nous	-
24	4164567		Pin, Fan Motor Pulley		Appelez-nous	-
24	4164516		Fan Motor Pulley		Appelez-nous	-
25	4164514		Motor, Convection Fan		Appelez-nous	-
26	4164548		Screw, Convection Fan Motor Mounting Plate Mounting		Appelez-nous	-
26	4164543		Nut, Convection Fan Motor Mounting (2)		Appelez-nous	-
26	4164561		Screw, Convection Fan Motor Mounting (2)		Appelez-nous	-
26	4164515		Plate, Convection Fan Motor Mounting		Appelez-nous	-
27	4164440		Spring, Damper		Appelez-nous	-
28	4164443		Duct, Damper		Appelez-nous	-
28	4164548		Screw, Damper Mounting		Appelez-nous	-
29	4164439		Damper		Appelez-nous	-
30	4164442		Seal, Damper		Appelez-nous	-
31	4164445		Insulator		Appelez-nous	-
32	4164444		Insulator		Appelez-nous	-
33	4164438		Spring, Sma		Appelez-nous	-
34	4164441		Damper Shaft		Appelez-nous	-
34	4164535		Washer, Sma Spring Mounting		Appelez-nous	-
34	4164533		Screw, Sma Spring Mounting		Appelez-nous	-
35	4164561		Screw, Cooling Fan Motor Mounting (2)		Appelez-nous	-
35	4164563		Nut, Cooling Fan Motor Mounting (2)		Appelez-nous	-
35	4164523		Motor, Cooling Fan		Appelez-nous	-
36	4164525		Cooling Fan Shroud		Appelez-nous	-
37	4164524		Blade, Cooling Fan		Appelez-nous	-
38	4164526		Duct, Magnetron Cooling		Appelez-nous	-
38	4164569		Screw, Magnetron Cooling Duct Mounting		Appelez-nous	-
39	4164570		Screw, Magnetron Mounting		Appelez-nous	-
39	4164571		Screw, Magnetron Mounting (3)		Appelez-nous	-
39	4164509		Magnetron		Appelez-nous	-
40	4164437		Tray, Turntable		Appelez-nous	-
41	4164544		Screw, Turntable Coupling Mounting (3)		Appelez-nous	-
41	4164448		Coupling, Turn- Table		Appelez-nous	-
42	4164447		Roller, Turn- Table (3)		Appelez-nous	-
42	4164538		Screw, Turntable Roller Mounting (6)		Appelez-nous	-
43	4164466		Spacer, Turntable Motor		Appelez-nous	-
44	4164464		Plate, Turntalbe Motor Mounting		Appelez-nous	-
45	4164465		Motor, Turntable		Appelez-nous	-
45	4164609		Screw, Turntable Motor Mounting (4)		Appelez-nous	-
46	4164471		Cover, Waveguide		Appelez-nous	-
46	4164536		Screw, Waveguide Cover Mounting (3)		Appelez-nous	-
47	4164485		Plate, Hinge Mounting		Appelez-nous	-
47	4164564		Screw, Door Mounting (4)		Appelez-nous	-
48	4164446		Oven Cavity		Appelez-nous	-
49	4164481		Bottom, Inner Cabinet		Appelez-nous	-
50	4164474		Insulation, Right Side		Appelez-nous	-
51	4164480		Inner Cabinet Side, Left		Appelez-nous	-
52	4164496		Hook, Upper Latch		Appelez-nous	-
53	4164497		Hook, Lower Latch		Appelez-nous	-
53	4392027		Screw, Latch Hook Mounting (2)   (Replaces: 4164501)				$ 138.41
54	4392027		Switch, Monitor   (Replaces: 4164501)				$ 138.41
55	4164610		Screw, Monitor Switch Lever Mounting		Appelez-nous	-
55	4164498		Lever, Monitor Switch		Appelez-nous	-
55	4164556		Washer, Mointer Switch Lever Mounting		Appelez-nous	-
56	4392027		Switch, Primary Interlock   (Replaces: 4164500)				$ 138.41
57	4164503		Switch, Stop		Appelez-nous	-
58	4164499		Stop Switch Lever		Appelez-nous	-
59	4392027		Switch, Secondary Interlock   (Replaces: 4164502)				$ 138.41
60	4164462		Hot Air Duct Left End		Appelez-nous	-
61	4164461		Hot Air Duct Front		Appelez-nous	-
62	4164521		Hot Air Duct Seal		Appelez-nous	-
63	4164522		Sensor Seal		Appelez-nous	-
64	4164460		Hot Air Duct Top		Appelez-nous	-
65	4164478		Airguide Duct, Rear		Appelez-nous	-
66	4164482		Inner Cabinet Top		Appelez-nous	-
67	4164477		Airguide Duct, Front		Appelez-nous	-
68	4164476		Insulation, Top		Appelez-nous	-
69	4164463		Hot Air Duct Right End		Appelez-nous	-
70	4164589		Chassis Support		Appelez-nous	-
