SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Control Frame And Knobs


04 - Control Compartment


05 - Latch


06 - Liner


07 - Oven Door

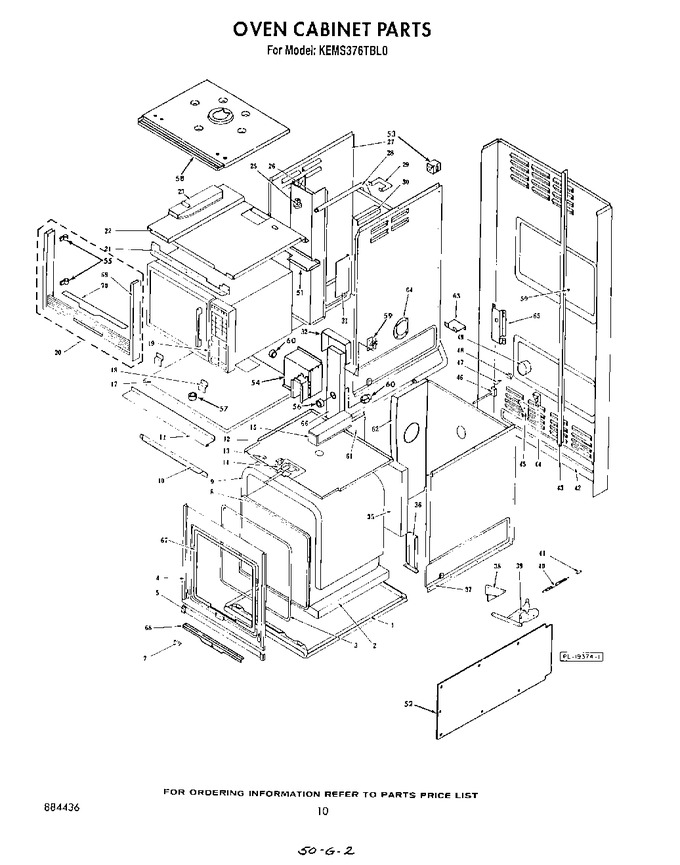

08 - Oven Cabinet


09 - Microwave Control Panel


10 - Microwave Door


11 - Microwave Cabinet


12 - Microwave Oven


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4173076		Main Bottom (includes Oven Support And Main Bottom)		Appelez-nous	-
2	4164191		Insulation, Bottom		Appelez-nous	-
3	4168829		Door Gasket		Appelez-nous	-
4	3178717		Front Frame		Appelez-nous	-
5	3178731		Bottom Trim		Appelez-nous	-
7	4167588		Cover, Seal End		Appelez-nous	-
9	4169310		Insulation, Top And Sides		Appelez-nous	-
10	4169336		Control Frame Support		Appelez-nous	-
11	4159186		Screw (3)		Appelez-nous	-
11	4159470		Screw (5)		Appelez-nous	-
11	3178495		Module Air Baffle		Appelez-nous	-
12	4169314		Compartment Top		Appelez-nous	-
12	4159465		Screw (9)		Appelez-nous	-
13	4163821		Knob, Latch Handle (clean)		Appelez-nous	-
15	4168681		Collector Box		Appelez-nous	-
15	4159465		Screw, (2)		Appelez-nous	-
17	4173043		Bushing Elect.		Appelez-nous	-
17	4173077		Module Support Assembly		Appelez-nous	-
17	4159465		Screw, (2)		Appelez-nous	-
18	3178494		Shim		Appelez-nous	-
18	4159465		Screw (5)		Appelez-nous	-
18	4164407		Module Brace		Appelez-nous	-
18	4168838		Nut, Tinnerman		Appelez-nous	-
20	4168863		Trim Module & Deflector Assy. (screw (4))		Appelez-nous	-
20	3178065		Trim Module & Deflector Assy. (almond)		Appelez-nous	-
20	3178064		Trim Module & Deflector Assy. (white)		Appelez-nous	-
20	3178062		Trim Module & Deflector Assy. (black)		Appelez-nous	-
21	4159470		Screw (4)		Appelez-nous	-
21	4167693		Control Frame Support		Appelez-nous	-
22	4169514		Exhaust Shield		Appelez-nous	-
23	4164312		Vent Box		Appelez-nous	-
25	4159030		Strain Relief Bushing		Appelez-nous	-
26	4164309		Cabinet Back		Appelez-nous	-
26	4159465		Screw (11)		Appelez-nous	-
27	4159465		Screw (6)		Appelez-nous	-
27	4163726		Cabinet Side Upper		Appelez-nous	-
28	4168591		Vent Tube		Appelez-nous	-
29	4168140		Upper Vent Retainer		Appelez-nous	-
29	4159465		Screw, (2)		Appelez-nous	-
30	4168311		Cabinet Side Extension		Appelez-nous	-
31	4164311		Trim Bracket		Appelez-nous	-
31	4159465		Screw (6)		Appelez-nous	-
32	4168207		Intake Duct		Appelez-nous	-
35	4164192		Insulation, Rear		Appelez-nous	-
35	4159465		Screw		Appelez-nous	-
36	4167526		Rear Anchor		Appelez-nous	-
36	4159465		Screw (4)		Appelez-nous	-
37	4173080		Cabinet Side Lower		Appelez-nous	-
37	4159465		Screw		Appelez-nous	-
38	4167597		Cam Plate, R.h.		Appelez-nous	-
38	4159465		Cam Plate (screw)		Appelez-nous	-
38	4167598		Cam Plate (l.h.)		Appelez-nous	-
39	4167596		Hinge Assembly		Appelez-nous	-
39	4159188		Screw (6)		Appelez-nous	-
40	4173048		Door Spring		Appelez-nous	-
41	4167599		Spring, Anchor		Appelez-nous	-
42	4164297		Cabinet Back		Appelez-nous	-
42	4159465		Screw (21)		Appelez-nous	-
43	4163767		Cabinet Support (r.h.)		Appelez-nous	-
43	4163768		Cabinet Support (l.h.)		Appelez-nous	-
43	4159465		Cabinet Support (screw)		Appelez-nous	-
43	W11233072		Cabinet Support (screw (6))   (Replaces: 4159450)			Immediately	$ 12.62
44	4163836		Rotisserie Motor		Appelez-nous	-
45	4159501		Washer, Lock (4) Mounting Plate		Appelez-nous	-
45	4167469		Mounting Plate		Appelez-nous	-
45	WP488234		Screw (4)   (Replaces: 4159334)				$ 6.07
46	4168550		Rt Thermostat		Appelez-nous	-
47	8009		Bulb 40 Watt   (Replaces: 311255)			Immediately	$ 16.80
48	4168755		Socket, Lamp		Appelez-nous	-
49	4159465		Screw (3)		Appelez-nous	-
49	4167579		Oven Light Shield		Appelez-nous	-
50	4159188		Screw		Appelez-nous	-
50	4168590		Spacer (6)		Appelez-nous	-
51	4164337		Intake		Appelez-nous	-
51	4159465		Screw Exhaust Baffle		Appelez-nous	-
52	4159469		Screw (2)		Appelez-nous	-
52	4164338		Spacer (2)		Appelez-nous	-
52	4164336		Side Panel (2)		Appelez-nous	-
52	4159465		Screw (6)		Appelez-nous	-
53	4164406		Snap In Outlet		Appelez-nous	-
54	4159458		Screw (2)		Appelez-nous	-
54	4159465		Screw (6)		Appelez-nous	-
54	4173082		Fan Cover (includes Fan)		Appelez-nous	-
54	4159493		Washer (2)				$ 21.02
55	4159603		Washer (4)		Appelez-nous	-
55	4164586		Clip, Capillary		Appelez-nous	-
55	4159470		Screw (4)		Appelez-nous	-
56	4159046		Electrical Bushing		Appelez-nous	-
57	4173043		Electrical Bushing		Appelez-nous	-
58	4173072		Sandwich Panel		Appelez-nous	-
59	4159461		Screw		Appelez-nous	-
59	4173085		Safety Switch (includes Resistor Block And Thermostat Disc)		Appelez-nous	-
59	4159460		Screw		Appelez-nous	-
60	4164600		Strain Relief		Appelez-nous	-
61	4159465		Extension, Air Duct (screw (4))		Appelez-nous	-
61	4173016		Extension, Air Duct (left Hand)		Appelez-nous	-
61	4173017		Extension, Air Duct (right Hand)		Appelez-nous	-
62	4163754		Air Duct (left Hand)		Appelez-nous	-
62	4163755		Air Duct (right Hand)		Appelez-nous	-
63	4159465		Screw, (2)		Appelez-nous	-
63	4168170		Retainer, Lower Vent		Appelez-nous	-
64	4163883		Cover Plate		Appelez-nous	-
64	4159465		Screw (4)		Appelez-nous	-
65	4168210		Back Cover		Appelez-nous	-
65	4159035		Bushing Elect.		Appelez-nous	-
65	4159465		Screw (8)		Appelez-nous	-
66	4173079		Intake Module		Appelez-nous	-
66	4175379		Nut Tinnerman		Appelez-nous	-
66	4159465		Screw (4)		Appelez-nous	-
67	4168863		Screw		Appelez-nous	-
67	3178580		Seal High Temp.		Appelez-nous	-
68	3177549		Retainer-gasket		Appelez-nous	-
68	4168863		Screw (6)		Appelez-nous	-
69	3178059		Trim, Module (black)		Appelez-nous	-
69	3179703		Trim, Module (almond)		Appelez-nous	-
69	3179702		Trim, Module (white)		Appelez-nous	-
70	3178066		Deflector, Heat (black)		Appelez-nous	-
70	3178069		Deflector, Heat (brushed Chrome)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
