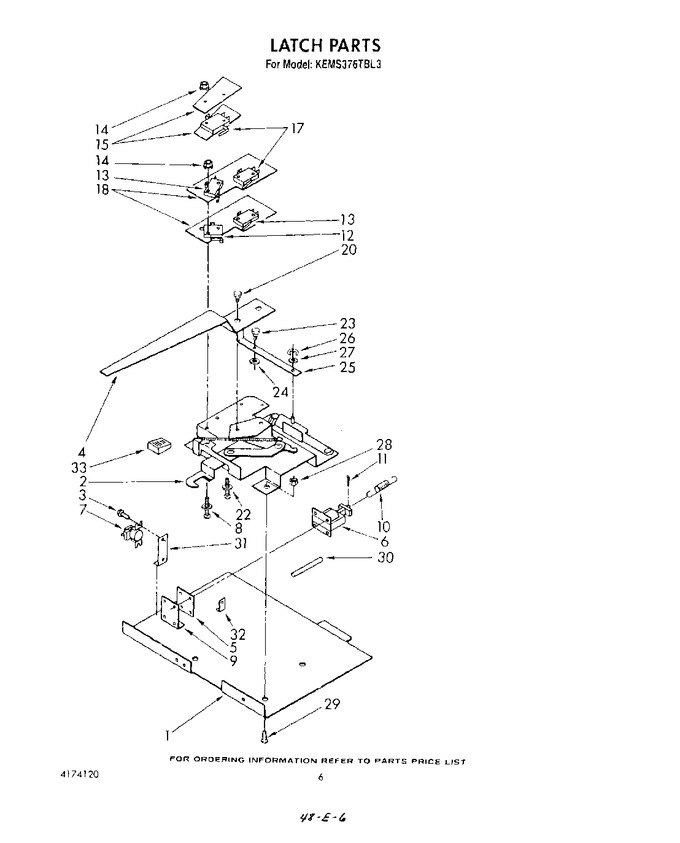

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4168063 | Latch Mounting Plate |
|
- | |||||
| 2 | 4168538 | Mechanism, Latch |
|
- | |||||
| 3 | 4159186 | Screw, No.10-24 X 3/8`` Hex Tcs |
|
- | |||||
| 4 | 4169362 | Spacer, Latch |
|
- | |||||
| 4 | 3177965 | Lever, Latch |
|
- | |||||
| 5 | 4168169 | Solenoid Spacer |
|
- | |||||
| 6 | 4169323 | Solenoid |
|
- | |||||
| 7 | 4159445 | Screw, (2) |
|
- | |||||
| 7 | 4173007 | Thermal Switch |
|
- | |||||
| 8 | 4159117 | Nut Flexlock (2) |
|
- | |||||
| 8 | 4173075 | Screw, 4-40 X 1 1/4 |
|
- | |||||
| 9 | 4168292 | Plate, Mounting |
|
- | |||||
| 9 | 4159470 | Screw (2) |
|
- | |||||
| 10 | 4168560 | Solenoid Spring |
|
- | |||||
| 11 | 4159129 | Cotter Pin |
|
- | |||||
| 12 | 4168514 | Latch Switch With Roller |
|
- | |||||
| 13 | 4164366 | Latch Switch, Normally Open |
|
- | |||||
| 14 | 4159117 | Locknut (2) |
|
- | |||||
| 15 | 4163746 | Insulator, Switch (2) |
|
- | |||||
| 17 | 4168517 | Latch Switch |
|
- | |||||
| 18 | 4168522 | Insulator (2) |
|
- | |||||
| 20 | 4168579 | Screw, Latch (2) Lever Shoulder |
|
- | |||||
| 22 | 4173053 | Screw, Machine 4-40 X 1.250 (hex) |
|
- | |||||
| 23 | 4168554 | Screw, Actuator Arm Shoulder |
|
- | |||||
| 24 | 4159109 | Nut 10-24 Keps |
|
- | |||||
| 24 | 4168553 | Spacer, Actuator Arm |
|
- | |||||
| 25 | 4168058 | Actuator Arm |
|
- | |||||
| 26 | 4159160 | Retaining Ring |
|
- | |||||
| 27 | 4159603 | Washer, Flat |
|
- | |||||
| 28 | 4159109 | Nut, No.10-24 Hex (3) |
|
- | |||||
| 29 | 4159287 | Screw (3) |
|
- | |||||
| 30 | 3178555 | Sleeve, Insulator |
|
- | |||||
| 31 | 4173521 | Bracket, Switch |
|
- | |||||
| 32 | 4169465 | Screw (3) |
|
- | |||||
| 32 | 4173168 | Bracket, Harness |
|
- | |||||
| 33 | 4159201 | Screw |
|
- | |||||
| 33 | 4163821 | Knob, Latch |
|
- |
