Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4173076 Main Bottom (includes Oven Support And Main Bottom) Appelez-nous -
2 4164191 Insulation, Bottom Appelez-nous -
3 4168829 Door Gasket Appelez-nous -
4 3178717 Front Frame Appelez-nous -
5 3178731 Bottom Trim Appelez-nous -
9 4169310 Insulation, Top And Sides Appelez-nous -
10 4169336 Control Panel Support Appelez-nous -
10 4159470 Screw (4) Appelez-nous -
11 4159186 Screw (3) Appelez-nous -
11 4159470 Screw (5) Appelez-nous -
11 3178495 Module Air Baffle Appelez-nous -
12 4159465 Screw (11) Appelez-nous -
12 4169314 Compartment Top Appelez-nous -
15 4168681 Collector Box Appelez-nous -
15 4159465 Screw, (2) Appelez-nous -
17 4173043 Bushing Elect. Appelez-nous -
17 4173077 Module Support Assembly Appelez-nous -
17 4159465 Screw, (2) Appelez-nous -
18 4159451 Screw (4) Appelez-nous -
18 4168838 Nut, Tinnerman Appelez-nous -
18 4164407 Module Brace Appelez-nous -
18 4159465 Screw (5) Appelez-nous -
18 3178494 Shim Appelez-nous -
20 3178062 Module, Trim Appelez-nous -
20 4168863 Screw, (4) Appelez-nous -
21 4159470 Screw (4) Appelez-nous -
21 4167693 Control Frame Support Appelez-nous -
22 4169514 Exhaust Shield Appelez-nous -
23 4164312 Vent Box Appelez-nous -
25 4159030 Strain Relief Bushing Appelez-nous -
26 4159465 Screw (11) Appelez-nous -
26 4164309 Cabinet Back Duct Appelez-nous -
27 4163726 Cabinet Side Upper Appelez-nous -
27 4159465 Screw (6) Appelez-nous -
28 4168591 Vent Tube Appelez-nous -
29 4159465 Screw, (2) Appelez-nous -
29 4168140 Upper Vent Retainer Appelez-nous -
30 4168311 Cabinet Side Extension Appelez-nous -
31 4159465 Screw (6) Appelez-nous -
31 4164311 Trim Bracket Appelez-nous -
32 4168207 Intake Duct Appelez-nous -
35 4159465 Screw (13) Appelez-nous -
35 4164192 Insulation, Rear Appelez-nous -
36 4167526 Rear Anchor Appelez-nous -
36 4159465 Screw (4) Appelez-nous -
37 4159465 Screw Appelez-nous -
37 4173080 Cabinet Side Lower Appelez-nous -
38 4167598 Cam Plate (l.h.) Appelez-nous -
38 4167597 Cam Plate, R.h. Appelez-nous -
38 4159465 Cam Plate (screw (9)) Appelez-nous -
39 4167596 Hinge Assembly Appelez-nous -
39 4159188 Screw (6) Appelez-nous -
40 4173048 Door Spring Appelez-nous -
41 4167599 Spring, Anchor Appelez-nous -
42 4164297 Cabinet Back Appelez-nous -
42 4159465 Screw (21) Appelez-nous -
43 4159465 Cabinet Support (screw) Appelez-nous -
43 4163767 Cabinet Support (r.h.) Appelez-nous -
43 4163768 Cabinet Support (l.h.) Appelez-nous -
43 W11233072 Cabinet Support (screw (6))   (Replaces: 4159450) In-Stock Immediately $ 12.62

44 4163836 Rotisserie Motor Appelez-nous -
45 4167469 Mounting Plate Appelez-nous -
45 4159501 Washer, Lock (4) Appelez-nous -
45 4159465 Screw (3) Appelez-nous -
45 WP488234 Screw (4)   (Replaces: 4159334) Special Order $ 6.07

47 8009 Bulb 40 Watt   (Replaces: 311255) In-Stock Immediately $ 16.80

48 4168755 Socket, Lamp Appelez-nous -
49 4167579 Oven Light Shield Appelez-nous -
49 4159465 Screw (3) Appelez-nous -
50 4168590 Spacer (6) Appelez-nous -
50 4159188 Screw (6) Appelez-nous -
51 4164337 Intake Appelez-nous -
51 4159465 Screw Appelez-nous -
52 4164338 Spacer (2) Appelez-nous -
52 4164336 Side Panel (2) Appelez-nous -
52 4159465 Screw (6) Appelez-nous -
52 4159469 Screw (2) Appelez-nous -
53 4164406 Snap In Outlet Appelez-nous -
54 4159465 Screw (6) Appelez-nous -
54 4173082 Fan Cover (includes Fan) Appelez-nous -
54 4159458 Screw (2) Appelez-nous -
54 4159493 Washer (2) Special Order $ 21.02

55 4164586 Clip, Capillary Appelez-nous -
55 4159470 Screw (4) Appelez-nous -
55 4159603 Washer (4) Appelez-nous -
56 4159046 Electrical Bushing Appelez-nous -
57 4173043 Electrical Bushing Appelez-nous -
58 4173072 Sandwich Panel Appelez-nous -
59 4173085 Safety Switch (includes Resistor Block And Thermostat Disc) Appelez-nous -
59 4159460 Screw Appelez-nous -
59 4159461 Screw Appelez-nous -
59 4159465 Screw (4) Appelez-nous -
60 4164600 Strain Relief Appelez-nous -
61 4173016 Extension, Air Duct (left Hand) Appelez-nous -
61 4173017 Extension, Air Duct (right Hand) Appelez-nous -
61 4159465 Extension, Air Duct (screw (4)) Appelez-nous -
62 4163754 Air Duct (left Hand) Appelez-nous -
62 4163755 Air Duct (right Hand) Appelez-nous -
62 4159465 Air Duct (screw (14)) Appelez-nous -
63 4168170 Retainer, Lower Vent Appelez-nous -
63 4159465 Screw, (2) Appelez-nous -
64 4163883 Cover Plate Appelez-nous -
64 4159465 Screw (6) Appelez-nous -
65 4159465 Screw (8) Appelez-nous -
65 4168210 Back Cover Appelez-nous -
65 4159035 Bushing Elect. Appelez-nous -
66 4159465 Screw (4) Appelez-nous -
66 4173079 Intake Module Appelez-nous -
66 4175379 Nut Tinnerman Appelez-nous -
67 3178580 Seal High Temp. Appelez-nous -
67 4168863 Screw (7) Appelez-nous -
68 3177549 Retainer-gasket Appelez-nous -
68 4168863 Screw (6) Appelez-nous -
69 4159465 Screw Appelez-nous -
69 4167593 Clamp, Conduit Appelez-nous -
70 3178059 Module, Trim Appelez-nous -
71 3178066 Deflector, Heat Appelez-nous -
71 4159186 Screw (3) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

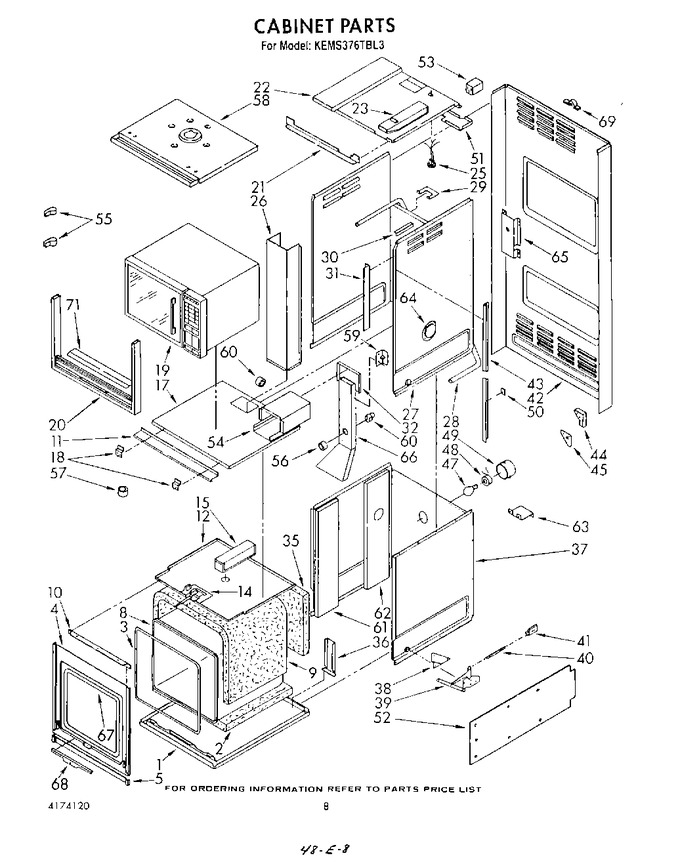

Diagram for KEMS376TBL3
