SELECT A DIAGRAM

02 - Control Panel, Literature

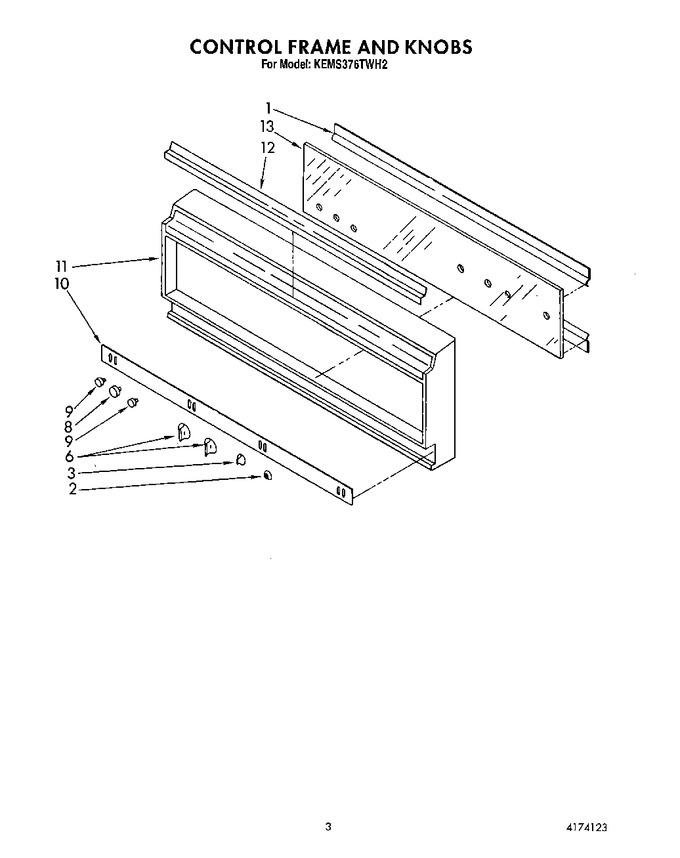

03 - Control Frame And Knob


04 - Control Compartment


05 - Unit


06 - Latch


07 - Oven Door


08 - Cabinet


09 - Microwave Door


10 - Microwave Control Panel


11 - Microwave Cabinet


12 - Microwave Oven


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4167590		Retainer (2)		Appelez-nous	-
1	4159456		Screw (4)		Appelez-nous	-
2	3179707		Bezel, Oven Light Switch		Appelez-nous	-
3	4163840		Knob, Meat Probe		Appelez-nous	-
6	WP4168403		Knob, Thermostat   (Replaces: 4168403)				$ 17.18
8	3179705		Knob, Timer (rotary Control)		Appelez-nous	-
9	3179704		Knob, Timer (push Button Control)		Appelez-nous	-
10	4166262		Nut (4)		Appelez-nous	-
10	3178566		Vent, Insert (brushed Chrome)		Appelez-nous	-
10	4168838		Nut, Tinnerman (3)		Appelez-nous	-
11	3178572		Frame, Control (almond)		Appelez-nous	-
11	3178571		Frame, Control (white)		Appelez-nous	-
12	4170323		Insert, Top (screw (5))		Appelez-nous	-
12	4173579		Insert, Top (white)		Appelez-nous	-
12	4173578		Insert, Top (almond)		Appelez-nous	-
13	4173449		Glass, Panel (almond)		Appelez-nous	-
13	4173450		Glass, Panel (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
