Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4174848 Frame, Control Panel (white) Appelez-nous -
1 4174858 Frame, Control Panel (almond) Appelez-nous -
2 4164484 Filter, Display Appelez-nous -
3 4164602 Unit, Control Appelez-nous -
3 4164603 Screws, Control Unit Mounting (3) Appelez-nous -
4 4164485 Plate, Control Panel Back Appelez-nous -
4 4164551 Screws, Control Panel Mounting (3) Appelez-nous -
4 4164552 Screw, Panel Frame Mounting Appelez-nous -
5 4164604 Relay Unit Appelez-nous -
5 4164550 Screws, Relay Unit Mounting Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

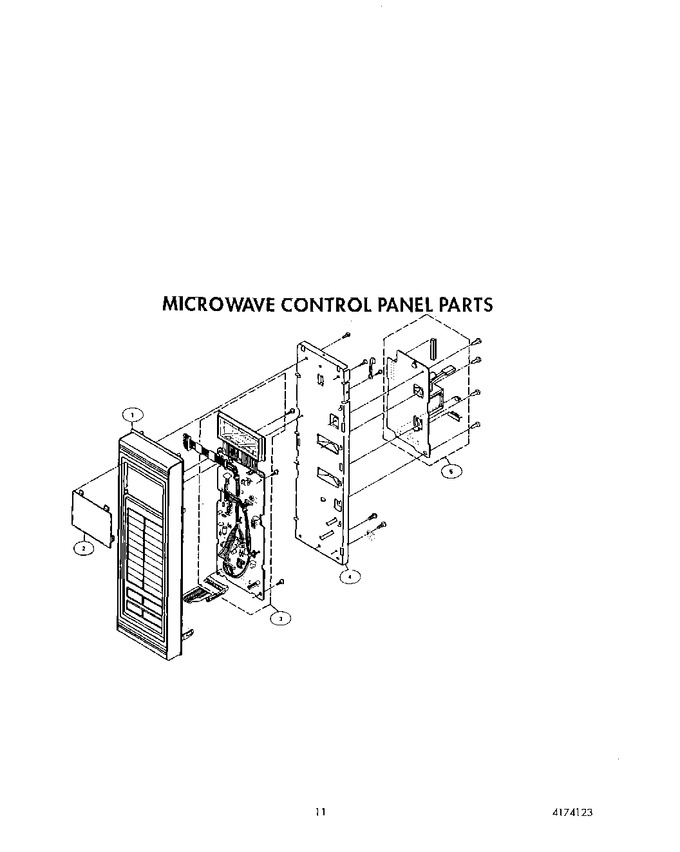

Diagram for KEMS376TWH2
