SELECT A DIAGRAM

02 - Control Panel, Literature


03 - Control Frame And Knob


04 - Control Compartment


05 - Unit


06 - Latch


07 - Oven Door


08 - Cabinet


09 - Microwave Door


10 - Microwave Control Panel


11 - Microwave Cabinet


12 - Microwave Oven


13 - Wiring Harness

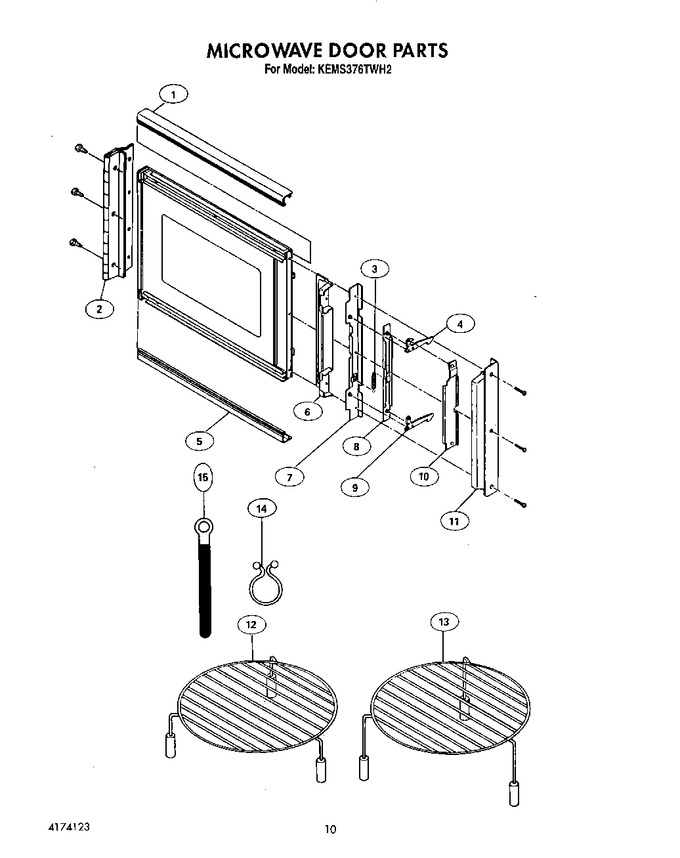

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4174854		Trim, Upper Door (white)		Appelez-nous	-
1	4174863		Trim, Upper Door (almond)		Appelez-nous	-
2	4164594		Screw, Door Hinge Mounting (3)		Appelez-nous	-
2	4174853		Hinge, Door		Appelez-nous	-
3	4164495		Spring, Latch		Appelez-nous	-
4	4164493		Catch, Upper Latch		Appelez-nous	-
5	4174864		Trim, Door Lower (almond)		Appelez-nous	-
5	4174855		Trim, Door Lower (white)		Appelez-nous	-
6	4174861		Trim, Door Panel Frame (almond)		Appelez-nous	-
6	4174851		Trim, Door Panel Frame (white)		Appelez-nous	-
7	4164490		Plate, Latch		Appelez-nous	-
8	4164492		Lever, Joint		Appelez-nous	-
9	4164494		Catch, Lower Latch		Appelez-nous	-
10	4174850		Lever, Latch Release (white)		Appelez-nous	-
10	4174860		Lever, Latch Release (almond)		Appelez-nous	-
11	4164593		Handle, Door (xscrews, Latch Cover Mounting (3))		Appelez-nous	-
11	4174852		Handle, Door (white)		Appelez-nous	-
11	4174862		Handle, Door (almond)		Appelez-nous	-
12	4164435		Rack, Broiling		Appelez-nous	-
13	4164434		Rack, Baking		Appelez-nous	-
14	4164519		Wire Tie, Small		Appelez-nous	-
15	4164520		Wire Tie, Large		Appelez-nous	-
71	4174849		Door, Complete (white)		Appelez-nous	-
71	4174859		Door, Complete (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
