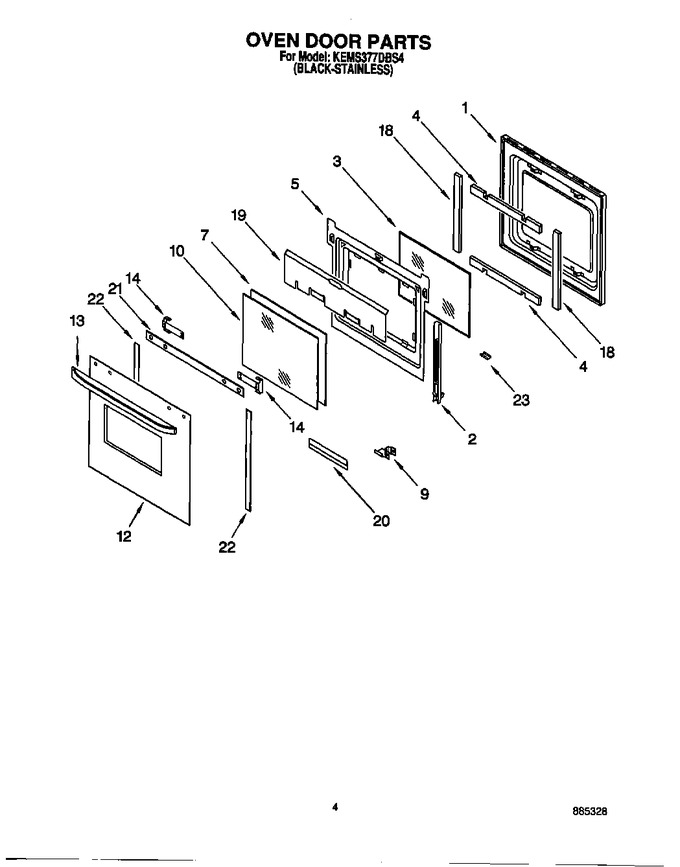

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450428		Door Liner		Appelez-nous	-
2	WP4455524		Hinge, Door   (Replaces: 4451173)			Immediately	$ 61.08
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4448679		Insulation, Top And Bottom Door		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4450422		Retainer, Glass		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
9	4450470		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
10	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
12	4451376		Door Glass & Panel Assy.		Appelez-nous	-
13	4448411		Door Handle		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
18	W11688413		Insulation, Sides   (Replaces: 4448707)				$ 23.08
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450361		Shield, Heat		Appelez-nous	-
20	4449031		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4450836		Seal, Door Top		Appelez-nous	-
22	4450838		Seal, Side		Appelez-nous	-
23	4450863		Retainer, Clip		Appelez-nous	-
