SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting

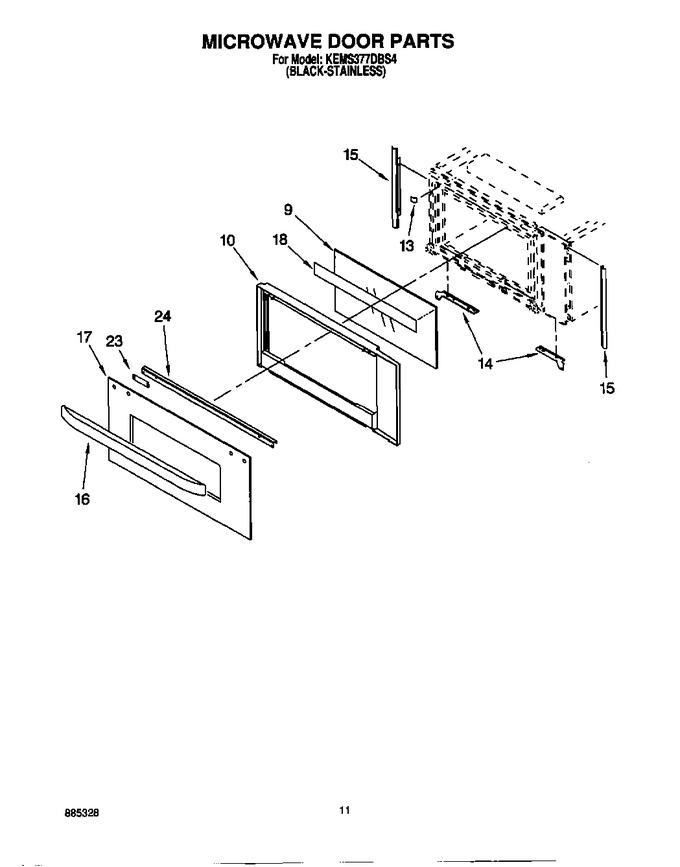

09 - Microwave Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	4448937		Glass, Middle				$ 66.02
10	4450945		Frame, Door		Appelez-nous	-
10	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
13	4450265		Tape, Foam		Appelez-nous	-
14	WP4449809		Bracket, Mounting (screw)   (Replaces: 4449809)			Immediately	$ 6.47
14	4449142		Bracket, Mounting (left Side)				$ 52.12
14	4449141		Bracket, Mounting (right Side)				$ 31.33
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4449083		Filler, Side				$ 36.44
16	4448411		Handle, Door		Appelez-nous	-
17	4451378		Glass, Outer & Panel Assy.		Appelez-nous	-
18	4451386		Tape, Foil		Appelez-nous	-
23	4451055		Spacer		Appelez-nous	-
24	4450950		Conduit, Combo		Appelez-nous	-
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
24	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
24	4450960		Bracket, Handle		Appelez-nous	-
24	W10276642		Screw   (Replaces: 4451040)				$ 5.49
24	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
24	261900		Citrine White				$ 51.34
24	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
24	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
24	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
24	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
24	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
24	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
24	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
24	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
24	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
24	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
24	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
24	242831		Wire (14 Ga. 200 C Red)				$ 342.23
24	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
24	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
24	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
24	4378950		Filler Kit (bl)		Appelez-nous	-
24	814381		Kit, Pin Hinge				$ 7.73
24	WP4448950		Screw, Installation   (Replaces: 4448950)				$ 6.80
24	4454871		Harness, Door Switch (also, Order Main Harness)		Appelez-nous	-
24	WP488366		Clamp   (Replaces: 488366)				$ 10.06
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
24	4454709		Harness, Latch		Appelez-nous	-
24	4450291		Harness, Transformer		Appelez-nous	-
24	4454859		Oven, Main (also, Order Door Switch Harness)		Appelez-nous	-
24	4450831		Ground (m/w)				$ 7.43
24	4450800		Screw				$ 11.55

    View Diagram in Separate Window       Print Part List
