Diagram # Part Number Description Series Availability Ships Price Add to Cart
4 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

4 4450051 Deflector, Latch Appelez-nous -
9 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

9 4450407 Baffle, Rear Appelez-nous -
10 4454710 Latch Assy Appelez-nous -
13 4450522 Plate, Adapter Appelez-nous -
14 4449124 Vent, Top Appelez-nous -
15 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

15 4449959 Vent, Bottom Appelez-nous -
16 4450919 Blower Appelez-nous -
17 4449883 Vent, Top Appelez-nous -
18 4450406 Vent, Bottom Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

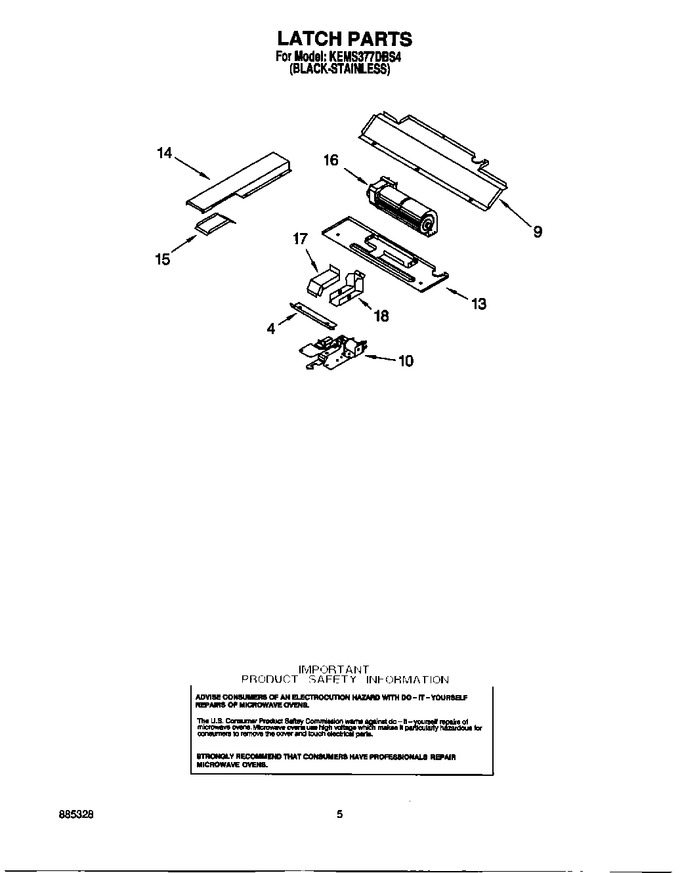

Diagram for KEMS377DBS4
