SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

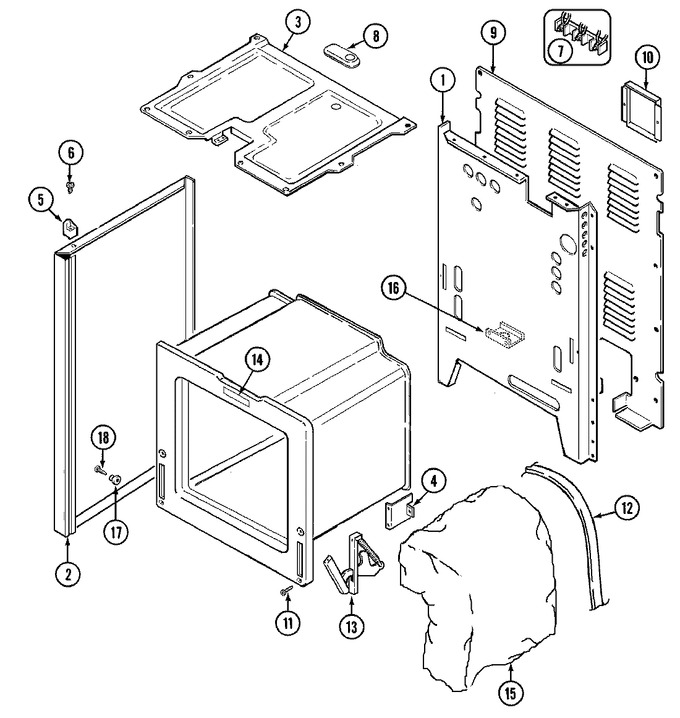

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001772		Back, Main	18	Appelez-nous	-
1	3604F218-51		Shield, Wire	18	Appelez-nous	-
1	74002334		Shield, Wire	26	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
2	74001885		Panel, Side (alm)	18	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
3	4011F239-19		Box, Burner	18	Appelez-nous	-
3	7111P020-60		Clamp, Wire	18	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
4	3807F400-51		Support,oven Rear	18	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	18	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	18	Appelez-nous	-
6	WP74004005		Screw   (Replaces: 7118P013-60)	18			$ 6.95
7	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	18		Immediately	$ 31.65
8	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	18		Immediately	$ 6.98
8	4005F432-45		Cover, Vent	18	Appelez-nous	-
9	4005F455-51		Cover, Wire	18	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
10	4005F427-51		Cover, Access	18	Appelez-nous	-
11	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	18			$ 4.29
12	4820F001-59		Strap, Retainer	18	Appelez-nous	-
13	7106P056-60		Hinge	18	Appelez-nous	-
14	7718P013-60		Cover, Door Lock	18	Appelez-nous	-
15	4804F039-60		Insulation, Oven Back	18	Appelez-nous	-
15	4804F044-60		Insulation, Oven Wrap	18	Appelez-nous	-
16	3605F174-51		Plate, Conduit Tubing	18	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	18			$ 7.07
18	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	18		Immediately	$ 6.98

    View Diagram in Separate Window       Print Part List
