SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Oven/base


05 - Top Assembly


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P020-60		Tube, Vent	18	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
2	3807F389-45		Support, Element	18	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
3	7406P072-60		Element, Broil	18	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
4	WP74003019		Element, Bake   (Replaces: Y04000058)	18		Immediately	$ 51.10
5	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	18		Immediately	$ 11.07
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	18			$ 65.15
7	74001705		Pedestal (sides)	18	Appelez-nous	-
7	74003016		Pedestal, Side	30	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	18	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
10	74001311		Leg, Leveling	18	Appelez-nous	-
10	W11665456		Leg, Leveling   (Replaces: 74002373)	30		Immediately	$ 25.30
11	WP7101P485-60		Screw   (Replaces: 7101P344-60)	18			$ 26.33
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	18		Immediately	$ 4.69
12	3804F112-51		Retainer, Insulation	18	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
13	8312P058-60		Foil, Insulation Retainer	18	Appelez-nous	-
14	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	18		Immediately	$ 66.10
15	8009		Bulb-oven   (Replaces: 7407P103-60)	18		Immediately	$ 16.80

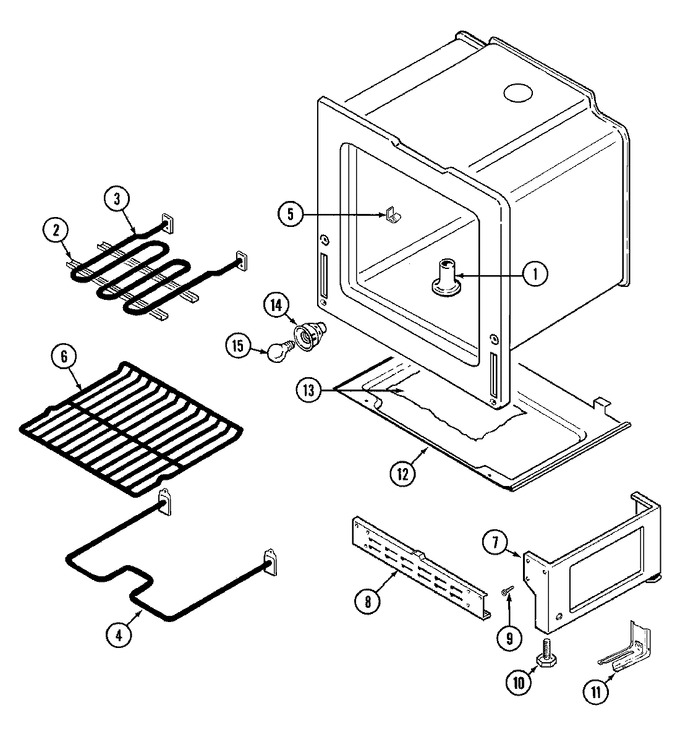

    View Diagram in Separate Window       Print Part List
