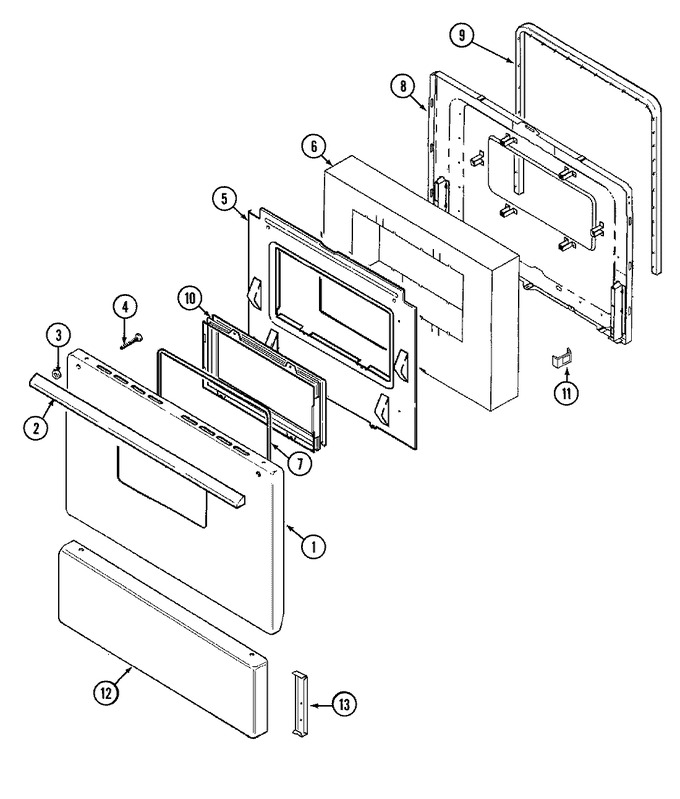

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
1	2401F121-74		Panel, Door (alm)	18	Appelez-nous	-
2	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	18			$ 186.01
3	8010P084-60		Spacer, Handle (blk)	18	Appelez-nous	-
4	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	18		Immediately	$ 7.69
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
5	3601F236-51		Baffle, Door	18	Appelez-nous	-
6	4804F050-60		Insulation, Door 2``	18	Appelez-nous	-
7	7201P017-60		Gasket, Window	18			$ 52.69
8	2402W212-19		Lining, Door	18	Appelez-nous	-
9	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	18		Immediately	$ 56.83
10	7907P015-60		Window Asy.	18	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
11	7112P034-60		Clip, Door	18	Appelez-nous	-
12	2416F042-74		Panel, Access (alm)	18	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
13	3801F257-51		Bracket, Panel	18	Appelez-nous	-
