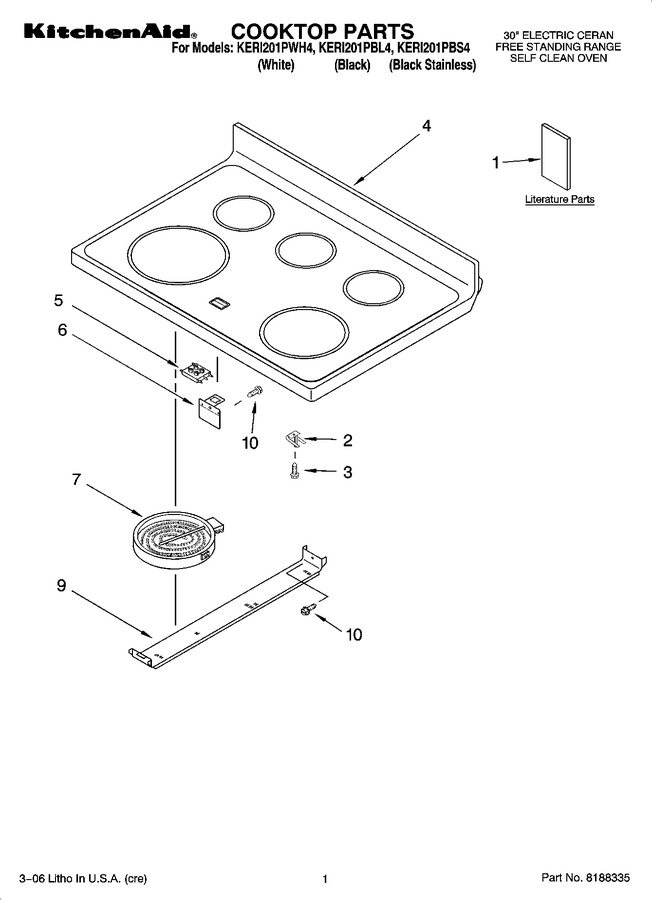

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9758377		Installation Instructions Template, Anti-tip		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10017660		Owners Manual		Appelez-nous	-
1	9756993		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 6.47
4	9756978		Cooktop (black)		Appelez-nous	-
4	9757001		Cooktop (black Stainless)		Appelez-nous	-
4	9756977		Cooktop (white)		Appelez-nous	-
5	8523739		Light, Indicator (hot Surface)				$ 120.71
6	8523741		Bracket, Ind Light		Appelez-nous	-
7	W11171119		Element, Surface (1200 W - Lr)   (Replaces: 8273994)			Immediately	$ 164.01
7	WP8273993		Element, Surface (1800 W - Rf/rr)   (Replaces: 8273993)			Immediately	$ 220.06
7	9757028		Element, Surface (100 W - Cr)		Appelez-nous	-
7	WP8523047		Element, Surface (2500/1000 W - Lf)   (Replaces: 9757027)				$ 314.33
9	8272791		Bracket, Element ((2))		Appelez-nous	-
9	8273720		Bracket, Element ((1))		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
