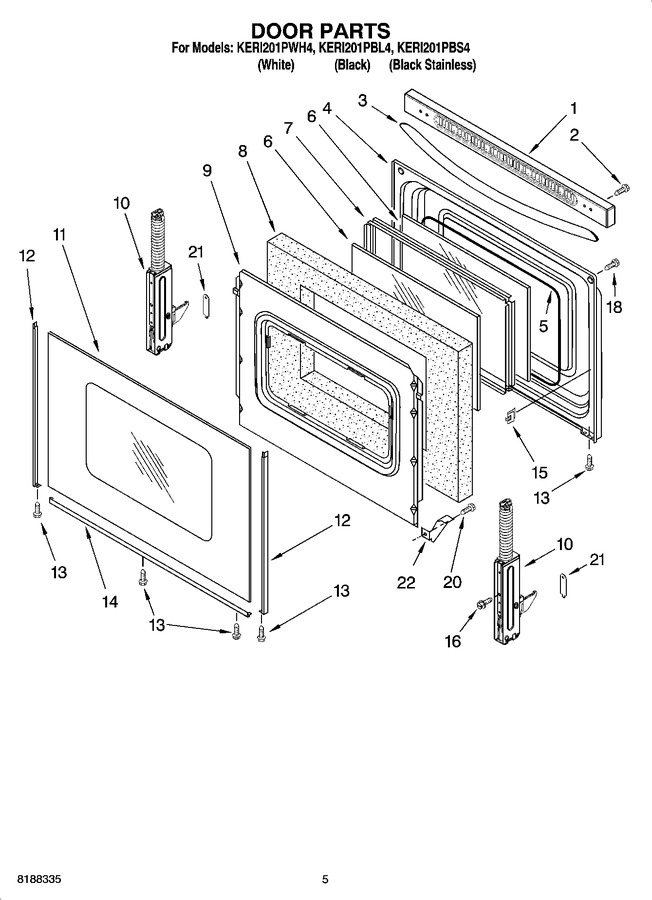

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016270 | Trim, Door Top (white) |
|
- | |||||
| 1 | W10016290 | Trim, Door Top (black) |
|
- | |||||
| 1 | W10016340 | Trim, Door Top (black Stainless) |
|
- | |||||
| 2 | 8534065 | Screw |
|
$ 35.92 | |||||
| 3 | 9758293 | Handle, Door (white) |
|
- | |||||
| 3 | 9758294 | Handle Door, (black) |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 160.45 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 76.37 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 86.89 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 199.17 | |||||
| 10 | W10347466 | Hinge, Door (Replaces: 9761493) |
|
Immediately | $ 188.43 | ||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: 9762127) |
|
$ 278.50 | |||||
| 11 | 9756435 | Glass, Outer (stainless Model) |
|
- | |||||
| 11 | 9762129 | Glass, Outer Door (black) |
|
- | |||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 48.39 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 14 | WP8523180 | Trim, Lower (stainless) (Replaces: 8523180) |
|
$ 144.86 | |||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 16 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 21 | 9761517 | Clip, Door Mntg |
|
$ 41.24 | |||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 |
