SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

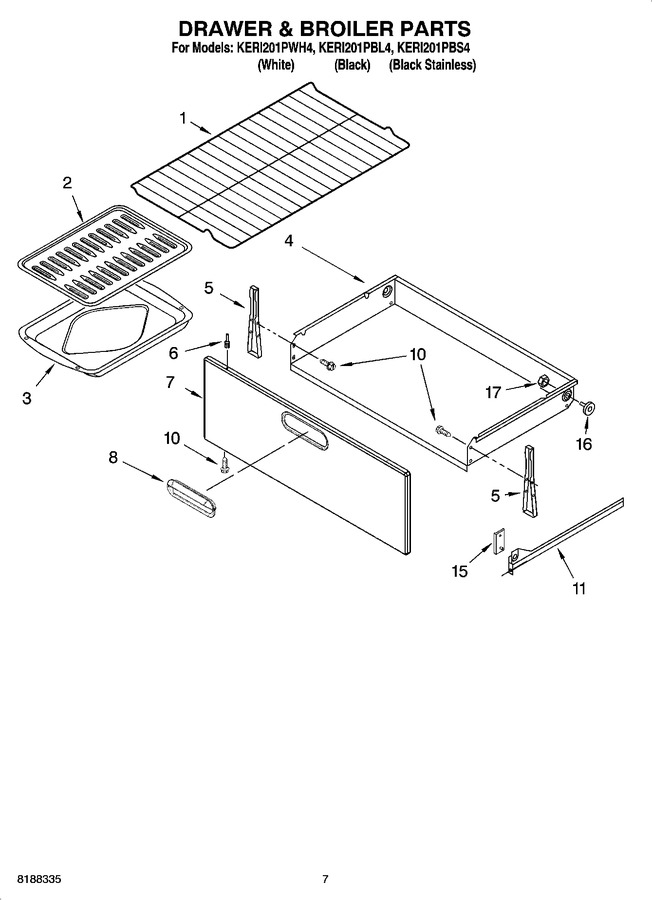

05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 42.16 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 82.63 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 279.38 | |||||
| 4 | 8272605 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer(2) (Replaces: 9758200) |
|
Immediately | $ 76.24 | ||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 7 | 9756327 | Panel, Drawer Front (black) |
|
- | |||||
| 7 | 9756328 | Panel, Drawer Front (stainless) |
|
- | |||||
| 7 | 9756325 | Panel, Drawer Front (white) |
|
- | |||||
| 8 | 9756952BL | Handle, Drawer (black) |
|
- | |||||
| 8 | 9756952WH | Handle, Drawer (white) |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 11 | 8274190 | Rail Assy, Drawer (left Side) |
|
- | |||||
| 11 | 8274191 | Rail Assy, Drawer (right Side) |
|
- | |||||
| 15 | 8522669 | Spacer, Glide |
|
- | |||||
| 16 | 814229 | Roller (2) (Replaces: 9751138) |
|
Immediately | $ 51.23 | ||||
| 17 | WP487939 | Nut (2) (Replaces: 487939) |
|
$ 6.95 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 2261590 | Cleaner (stainless Steel) |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 74.50 | ||||||
| W11447673 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.64 | |||||
| 9757045 | Harness, Oven |
|
- | ||||||
| 9761466 | Harness, Cooktop |
|
$ 83.34 | ||||||
| 9761464 | Harness, Cooktop |
|
- | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | ||||||
| WP3196154 | Screw, Ground (Replaces: 3196154) |
|
$ 7.04 | ||||||
| 814381 | Pin Kit-dr Removal (Replaces: 3196897) |
|
$ 7.73 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 9757335 | Harness, Console |
|
- | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 261582 | Grease |
|
- | ||||||
| 9758174 | Harness, Wire, Door Switch/sensor |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | |||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 8524132 | Shield, Wiring (2) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 4456147 | Cleaner, Glass |
|
- |
