SELECT A DIAGRAM

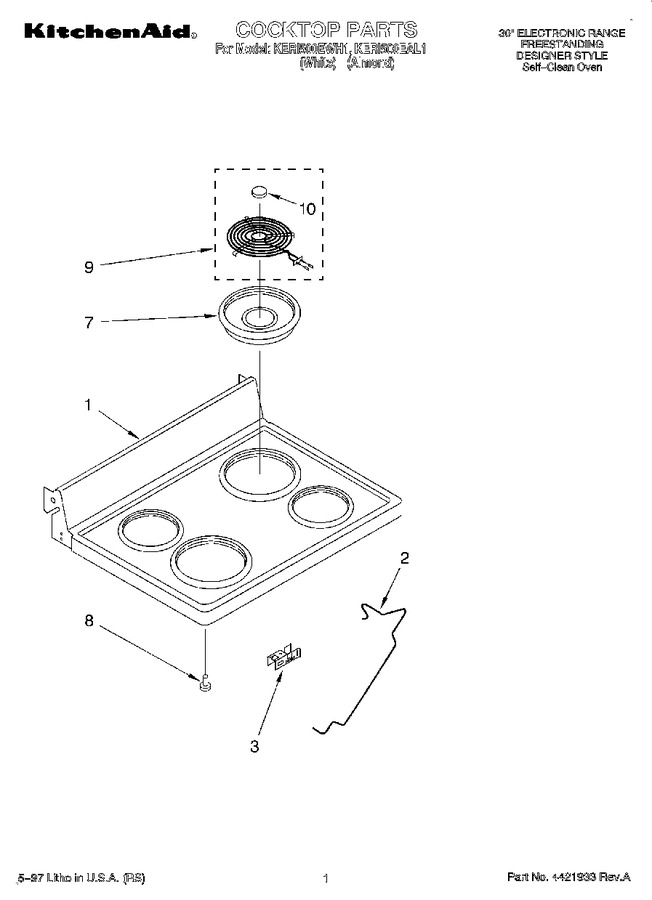

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Rear Chassis


06 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211942		Cooktop, Coil (white)		Appelez-nous	-
1	4211943		Cooktop, Coil (almond)		Appelez-nous	-
2	9751538		Cooktop Rod		Appelez-nous	-
3	WP313808		Screw, (4) 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
3	9781324		Receptacle Clip		Appelez-nous	-
7	WPW10290350		Drip Bowl (8``)   (Replaces: 3169205)			Immediately	$ 15.25
7	W10290353RW		Drip Bowl (6``)   (Replaces: 3169204)			Immediately	$ 19.27
8	238614		Bumper (2) White   (Replaces: 9750969)				$ 72.68
9	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9781326)			Immediately	$ 112.28
9	9781327		Element, Surface (coil, 6`` Lr (accu-simmer))		Appelez-nous	-
9	PS26-4BK		Element, Surface (coil, 8`` Lf-rr)   (Replaces: 9781325)			Immediately	$ 40.46
10	4211952		Medallion, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
