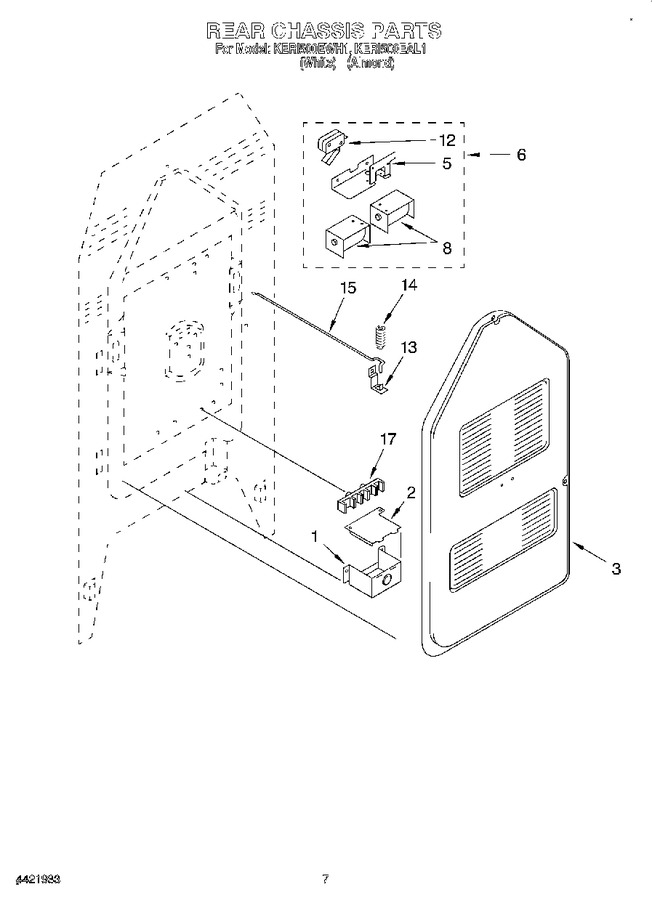

05 - Rear Chassis


06 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752344		Box, Terminal		Appelez-nous	-
2	9780265		Screw (2)		Appelez-nous	-
2	9752345		Cover, Terminal Box		Appelez-nous	-
3	4211813		Screw, (2) 10 X 3/8		Appelez-nous	-
3	9750150		Panel, Rear		Appelez-nous	-
5	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
5	9750526		Bracket, Lock		Appelez-nous	-
6	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
6	9750522		Oven Lock Assembly		Appelez-nous	-
8	9750524		Solenoid		Appelez-nous	-
8	4211945		Screw, (2) 10-32 X 5/16		Appelez-nous	-
8	4211875		Washer		Appelez-nous	-
12	9750965		Switch, Interlock				$ 72.00
12	9781450		Gasket, Door Vent		Appelez-nous	-
12	9750888		Nut (2)		Appelez-nous	-
12	9750887		Screw, (2)		Appelez-nous	-
12	9781490		Seal, Door Vent Side		Appelez-nous	-
13	9750834		Bracket, Spring		Appelez-nous	-
14	9750833		Spring, Door Lock		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	313660		Clip, (1)		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
17	WP112432		Nut, T-block (7)   (Replaces: 4319494)				$ 7.16
17	98884		Screw, (2) 10-16 X 1		Appelez-nous	-
17	3169573		Strap, Ground		Appelez-nous	-
17	WP681414		Screw, Grounding   (Replaces: 690989)			Immediately	$ 7.07
