SELECT A DIAGRAM

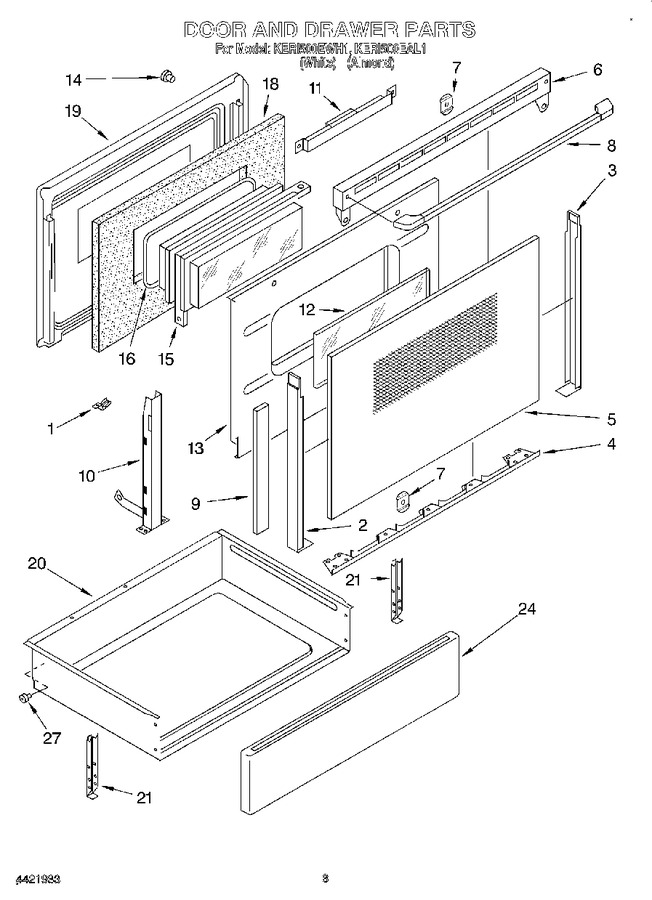

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Rear Chassis


06 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750676		Retainer, Glass		Appelez-nous	-
2	4212028		Trim, Door-left (white)		Appelez-nous	-
2	9750631PT		Trim, Door-left (almond)		Appelez-nous	-
3	9750632PT		Trim, Door-right (almond)		Appelez-nous	-
3	4212029		Trim, Door-right (white)		Appelez-nous	-
4	9781209PW		Trim, Door Bottom (white)		Appelez-nous	-
4	9781209PT		Trim, Door Bottom (almond)		Appelez-nous	-
4	9780265		Trim, Door Bottom (screw, 10 X 3/8)		Appelez-nous	-
5	9781245		Glass, Door (almond)		Appelez-nous	-
5	9781244		Glass, Door (white)		Appelez-nous	-
6	9751242GT		Vent, Door (almond)		Appelez-nous	-
6	3149333		Vent, Door (screw (2) 10ab X 1/2)				$ 5.33
6	9751242GW		Vent, Door (white)		Appelez-nous	-
7	9781490		Seal, Door Vent Side		Appelez-nous	-
7	9781502		Spacer, Door Vent		Appelez-nous	-
7	9781450		Gasket, Door Vent		Appelez-nous	-
8	4212069		Handle, Door (white)		Appelez-nous	-
8	4421442		Handle, Door (almond Mdl.)		Appelez-nous	-
8	WPW10001180		Handle, Door (screw (4) 10 X 1/2 (2))   (Replaces: 9781072)				$ 7.23
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
11	9750693		Channel, Heat		Appelez-nous	-
11	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
12	9750634		Baffle, Glass				$ 61.41
13	9750233		Shield, Door		Appelez-nous	-
14	238614		Bumper, Black   (Replaces: 9780771)				$ 72.68
15	9751245		Window Pack		Appelez-nous	-
16	9780265		Screw (2) 8 X 1/4		Appelez-nous	-
16	9751135		Seal, Window		Appelez-nous	-
18	WPW10208653		Insulation   (Replaces: 9750231)			Immediately	$ 49.92
19	9781197GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
24	4211992		Front, Drawer (white)		Appelez-nous	-
24	4211993		Front, Drawer (almond)		Appelez-nous	-
24	WP90296		Front, Drawer (clip)   (Replaces: 90296)				$ 7.07
27	814229		Roller, Drawer   (Replaces: 423713)			Immediately	$ 51.23
