SELECT A DIAGRAM

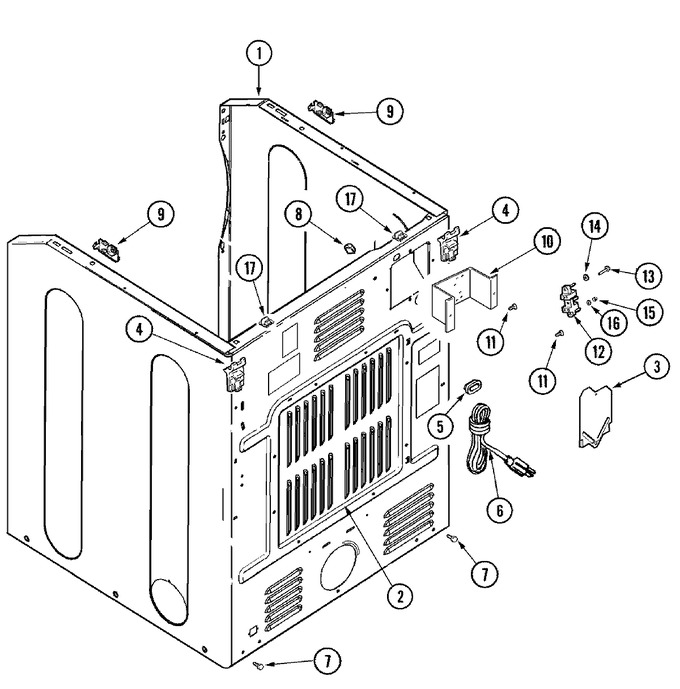

01 - Cabinet-rear


02 - Control Panel & Cabinet


03 - Door


04 - Heater


05 - Motor Drive


06 - Tumbler


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003582		Cabinet, Assy. (wht-as Pk)	10	Appelez-nous	-
2	22002092		Panel, Access	10	Appelez-nous	-
3	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
3	33001795		Cover, Terminal Block	10	Appelez-nous	-
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
4	22003367		Hinge, Plastic	10	Appelez-nous	-
5	211881		Grommet, Cord	10	Appelez-nous	-
6	22003750		Power Cord, Universal	10	Appelez-nous	-
6	22003808		Adapter, 13 Amp Australian	10	Appelez-nous	-
6	22004502		Clamp, Power Cord	29	Appelez-nous	-
6	33001425		Locknut, Eared For Canadian	29	Appelez-nous	-
6	33002258		Clamp, Power Cord	10	Appelez-nous	-
6	22003809		Adapter, 13 Amp European	10	Appelez-nous	-
6	22003810		Adapter, 13 Amp Uk	10	Appelez-nous	-
7	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
8	Y310376		Clip, Wire Harness	10	Appelez-nous	-
9	33002599		Pin, Locator	10	Appelez-nous	-
10	33001826		Bracket, Terminal Block----na	10	Appelez-nous	-
11	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
12	33002106		Shield, Terminal Block	10	Appelez-nous	-
12	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
13	W11164114		Screw, No.10-24 X 3/4 Inch   (Replaces: Y312209)	10			$ 3.76
14	Y311270		Washer, Terminal Block	10			$ 8.75
15	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
16	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	10			$ 7.25
17	22002013		Stop, Shipping	10			$ 5.43

    View Diagram in Separate Window       Print Part List
