SELECT A DIAGRAM

01 - Cabinet-rear


02 - Control Panel & Cabinet


03 - Door


04 - Heater


05 - Motor Drive


06 - Tumbler


07 - Wiring Information

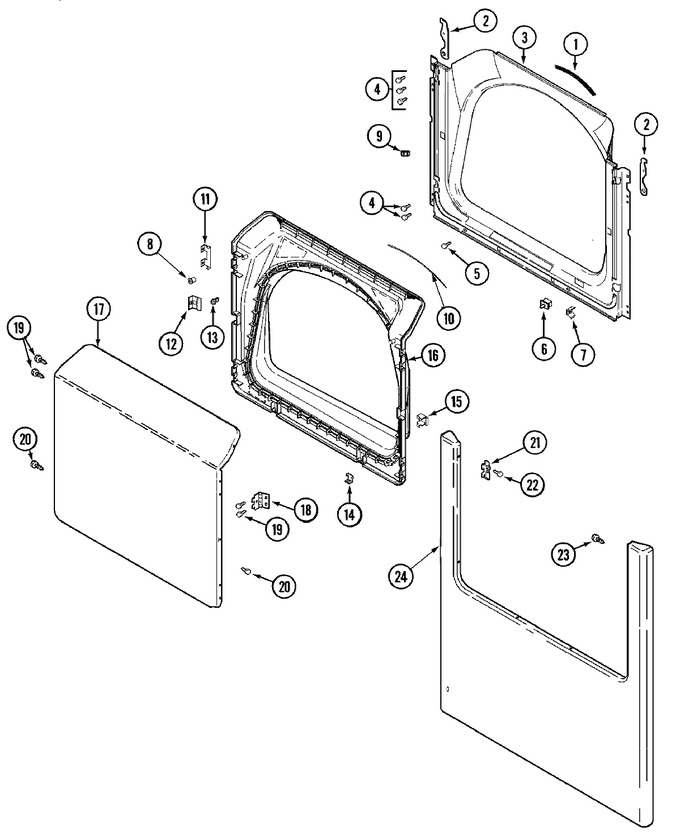

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001767		Seal, Shroud	10			$ 25.05
2	33002386		Security Hook	10	Appelez-nous	-
3	33001778		Shroud (wht)	10	Appelez-nous	-
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	33001768		Screw, Shroud	10	Appelez-nous	-
6	33002239		Switch, Door	10			$ 23.77
7	33001760		Bracket, Hinge	10	Appelez-nous	-
8	33001771		Bushing, Inner Door	10	Appelez-nous	-
9	306436		Door Latch Kit	10		Immediately	$ 10.17
10	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
11	22002038		Clip, Door (double)	10	Appelez-nous	-
12	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
13	33001761		Strike, Door (male)	10			$ 5.84
14	22002039		Clip, Door (single)	10			$ 8.15
15	33001763		Plug, Inner Door	10			$ 6.90
16	WP33002544		Door, Inner W/seal (wht)   (Replaces: 33002544)	10			$ 214.32
16	22002039		Clip, Door (single)	10			$ 8.15
16	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
17	33001867		Pad, Front	10	Appelez-nous	-
17	22001817		Sheet, Sound Damper (ft. Pnl)	10			$ 22.19
17	22003242		Door, Outer W/medallion (wht)	10	Appelez-nous	-
18	WP33001759		Hinge, Door   (Replaces: 33001759)	10			$ 69.86
19	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
20	W11233072		Screw   (Replaces: 22002517)	10		Immediately	$ 12.62
21	33001764		Cover, Hinge Hole (wht)	10			$ 36.41
22	WP33001787		Screw, Hinge   (Replaces: 33001787)	10			$ 10.45
23	22002012		Screw, Hinge	10			$ 5.48
24	22002241		Panel, Front (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
