View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

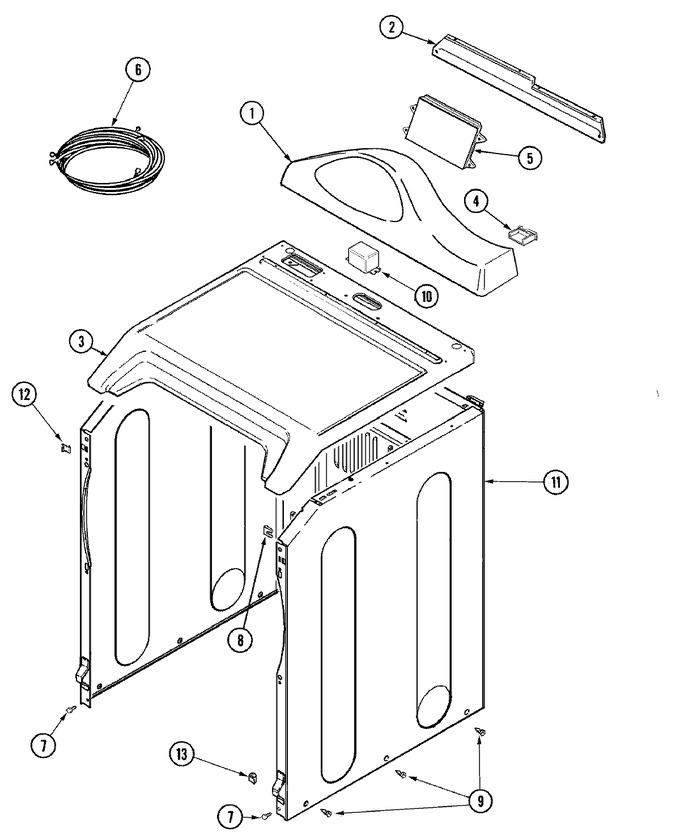

01 - Cabinet-rear
02 - Control Panel & Cabinet
03 - Door
04 - Heater
05 - Motor Drive
06 - Tumbler
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003757 | Console, Lcd W/membrane | 10 |
|
- | ||||
| 2 | 22002061 | Screw | 10 |
|
- | ||||
| 2 | 22003581 | Back, Console Panel | 10 |
|
- | ||||
| 3 | 33002627 | Cover, Top (wht-as Pk) | 10 |
|
- | ||||
| 4 | 22003276 | Cover, Console Plug (wht) | 10 |
|
- | ||||
| 5 | 33002880 | Control Board (as Pk) | 11 |
|
- | ||||
| 5 | 33002662 | Control Board (lcd) | 10 |
|
- | ||||
| 6 | 33002658 | Harness, Wire | 10 |
|
- | ||||
| 7 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 204439 | Screw & Fstner Assy(frt.panel) | 10 |
|
$ 8.80 | ||||
| 9 | 213007 | Screw----na (Replaces: 22003409) | 10 |
|
$ 10.99 | ||||
| 10 | 306199 | Relay, Heater | 10 |
|
$ 42.40 | ||||
| 11 | 22003639 | Cabinet Assy. (wht As Pk) | 10 |
|
- | ||||
| 12 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 13 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 14 | 33002678 | Use & Care | 10 |
|
- |
