Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33002633 Cover, Top (wht-as Pk) 10 Appelez-nous -
2 22001959 Wire, Ground 10 Appelez-nous -
3 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) 10 Special Order $ 9.79

4 33002642 Cabinet Assy (wht-as Pk) 10 Appelez-nous -
5 310933 Fastener 10 Appelez-nous -
6 22002049 Clip 10 Special Order $ 8.40

7 213280 Front Panel Bracket/fastener 10 Appelez-nous -
8 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62

9 22003298 Retainer, Wire 10 Special Order $ 7.71

10 213007 Screw, Cabinet 10 Special Order $ 10.99

11 22002239 Clip, Lower Front Panel 10 Special Order $ 5.84

12 Y310376 Clip, Wire Harness 10 Appelez-nous -
13 33001836 Strap, Top Cover Support 10 Appelez-nous -
14 206824 Relay, Spst 24vdc 10 Appelez-nous -
15 WP3177991 Screw   (Replaces: Y251119) 10 In-Stock Immediately $ 6.47

15 33002705 Bracket, Relay 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

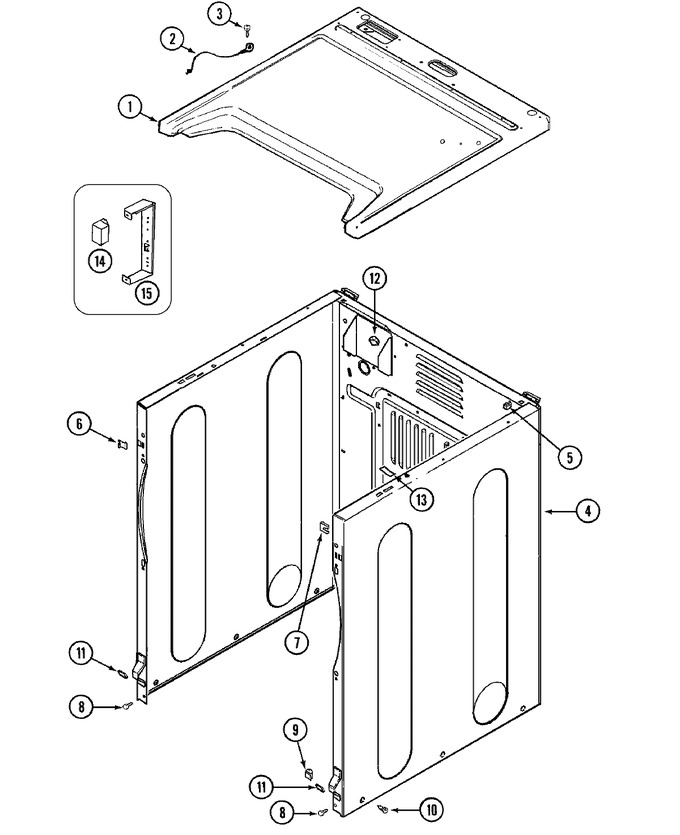

Diagram for MDG16PDBGW
