Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33001784 Panel, Control 10 Appelez-nous -
2 WPW10131119 Screw, Torx   (Replaces: 215506) 10 Special Order $ 6.26

3 205810 Wire, Ground 10 Appelez-nous -
4 W10756178 Screw   (Replaces: 215527) 10 Special Order $ 5.39

4 33002165 Backup Plate W/switch Assy 10 Appelez-nous -
5 WPW10424308 Pushbutton   (Replaces: 215517) 10 In-Stock Immediately $ 18.38

6 33002519 Bracket, Back (wht) 10 Appelez-nous -
6 22002954 Deflector, Water (w/adhesive) 10 Appelez-nous -
7 22003089 Console (wht) 10 Appelez-nous -
8 WP489128 Screw   (Replaces: 22001996) 10 Special Order $ 9.79

9 215003 Fastener 10 Appelez-nous -
10 211251 Screw 10 Appelez-nous -
10 22002139 Transformer (step-down Comm) 10 Appelez-nous -
10 22001419 Nut (elastic) 10 Appelez-nous -
11 WPW10130081 Board, Control   (Replaces: 33002358) 10 Special Order $ 277.17

11 33001204 Standoff, Circuit Board 10 Appelez-nous -
11 M0282005 Locknut   (Replaces: 912077) 10 Special Order $ 7.07

12 WPW10131114 Cover, Display   (Replaces: 22001962) 10 Special Order $ 42.79

13 WP489399 Screw   (Replaces: 211252) 10 Special Order $ 6.26

14 215526 Screw 10 Appelez-nous -
15 33001973 Wire Harness, Main 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

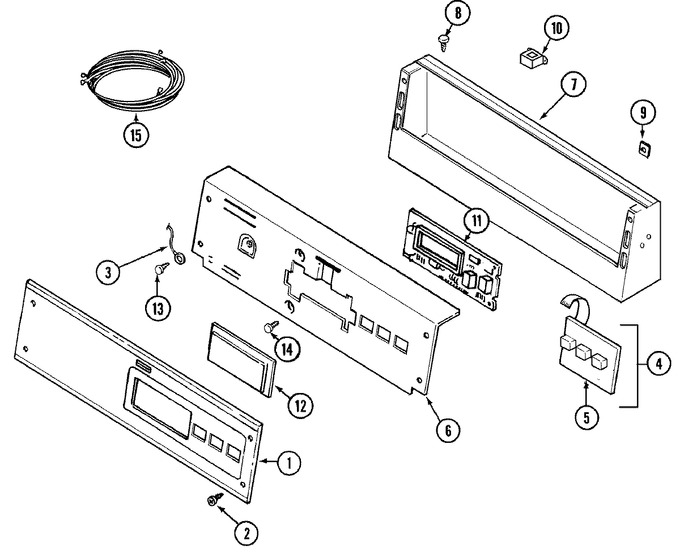

Diagram for MDG16PDBGW
