Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP33001789 Housing, Blower   (Replaces: 33001789) 10 Special Order $ 128.00

2 33001800 Duct Assy., Exhaust 10 Appelez-nous -
2 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62

3 WP9703438 Ring, Retaining   (Replaces: 410233) 10 In-Stock Immediately $ 3.81

4 WP33002797 Wheel, Blower   (Replaces: 33002797) 23 In-Stock Immediately $ 93.13

4 33001790 Wheel, Blower 10 In-Stock Immediately $ 44.73

5 WP312967 Clamp, Blower Housing   (Replaces: 312967) 10 In-Stock Immediately $ 10.68

6 WP33002917 Screw (hex Head)   (Replaces: 33001855) 10 In-Stock Immediately $ 6.90

7 Y313561 Screw----na 10 Special Order $ 5.27

8 WP33303391 Thermostat, Cycling   (Replaces: 33303391) 10 Special Order $ 127.00

8 WP694674 Cycling Thermostat 140 Deg.   (Replaces: 303392) 10 In-Stock Immediately $ 45.46

9 WP489128 Screw   (Replaces: 22001996) 10 Special Order $ 9.79

10 WP33001762 Fuse, Thermal (w` Bracket)   (Replaces: 33001762) 10 In-Stock Immediately $ 49.84

11 WP90767 Screw   (Replaces: 314848) 10 In-Stock Immediately $ 7.04

12 Y314137 Foot, Rubber 10 Special Order $ 14.08

13 33002711 Cover, Blower Housing 10 Appelez-nous -
14 314818 Screw 10 Appelez-nous -
15 W10197708 Motor & Pulley Assembly (50hz)   (Replaces: 33002479) 10 In-Stock Immediately $ 403.97

15 W10197708 Motor, Drive 50hz   (Replaces: 33002796) 23 In-Stock Immediately $ 403.97

16 WPY015825 Clip, Motor   (Replaces: 33002221) 10 Special Order $ 21.03

17 WP90767 Screw   (Replaces: Y313559) 10 In-Stock Immediately $ 7.04

17 WP90767 Screw   (Replaces: 211294) 10 In-Stock Immediately $ 7.04

17 33001948 Transformer 10 Appelez-nous -
18 Y310376 Clip, Wire Harness 10 Appelez-nous -
19 33002459 Spring, Idler   (Replaces: 33002460) 10 Special Order $ 6.94

19 33002461 Plug For Spring 10 Appelez-nous -
19 33002459 Assembly, Spring & Plug 10 Special Order $ 6.94

19 33002459 Spring, Idler   (Replaces: 33001754) 10 Special Order $ 6.94

20 WP6-3705180 Idler Arm & Shaft Assy.   (Replaces: 33001840) 10 In-Stock Immediately $ 44.32

21 WPY312527 Washer, Idler Shaft (qty-1)   (Replaces: Y312527) 10 In-Stock Immediately $ 10.01

22 WP6-3700340 Bearing, Idler Assembly   (Replaces: 33001783) 10 In-Stock Immediately $ 24.98

23 WP354987 Retaining Ring, Idler Shaft   (Replaces: 312958) 10 In-Stock Immediately $ 10.58

24 WP315772 Sleeve, Idler Arm   (Replaces: 315772) 10 In-Stock Immediately $ 10.39

25 WPY014874 Screw   (Replaces: Y014874) 10 Special Order $ 6.98

26 33001752 Support, Motor 10 Appelez-nous -
26 33002466 Support, Motor 10 Appelez-nous -
26 Y313561 Screw----na 10 Special Order $ 5.27

27 Y313561 Screw----na 10 Special Order $ 5.27

28 33002622 Base, (lwr) 10 Appelez-nous -
28 33001845 Base 10 Appelez-nous -
28 33002465 Base, (lwr)----na 10 Appelez-nous -
29 WP3177991 Screw   (Replaces: 22001078) 10 In-Stock Immediately $ 6.47

30 315471 Retainer, Wire 10 Appelez-nous -
31 410490 Spring, Wire Harness 10 Appelez-nous -
32 WP233550 Adjustable Leg & Nut   (Replaces: Y305086) 10 Special Order $ 7.16

33 WP62739 Nut   (Replaces: Y052740) 10 Special Order $ 6.85


    View Diagram in Separate Window     Print Icon   Print Part List

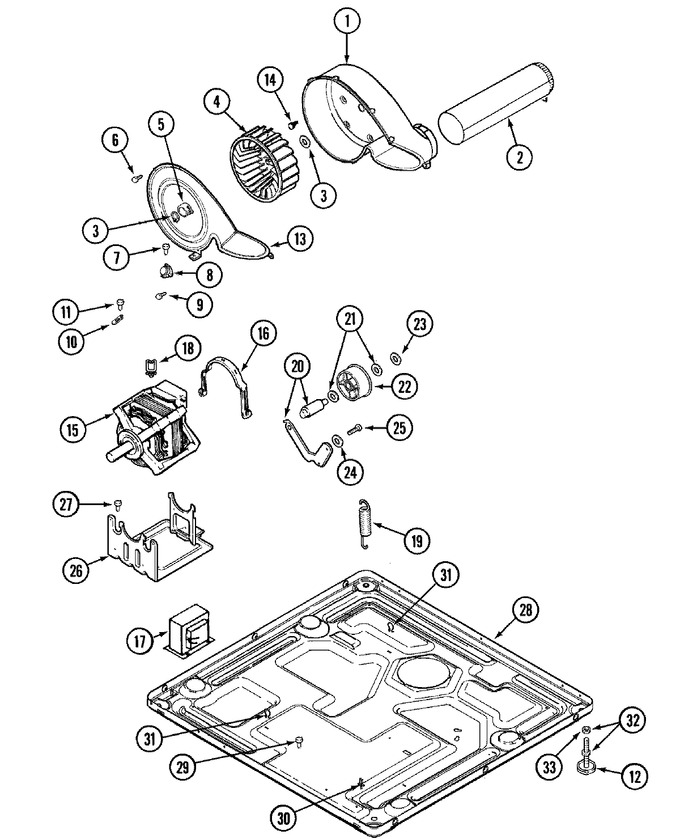

Diagram for MDG16PDBGW
