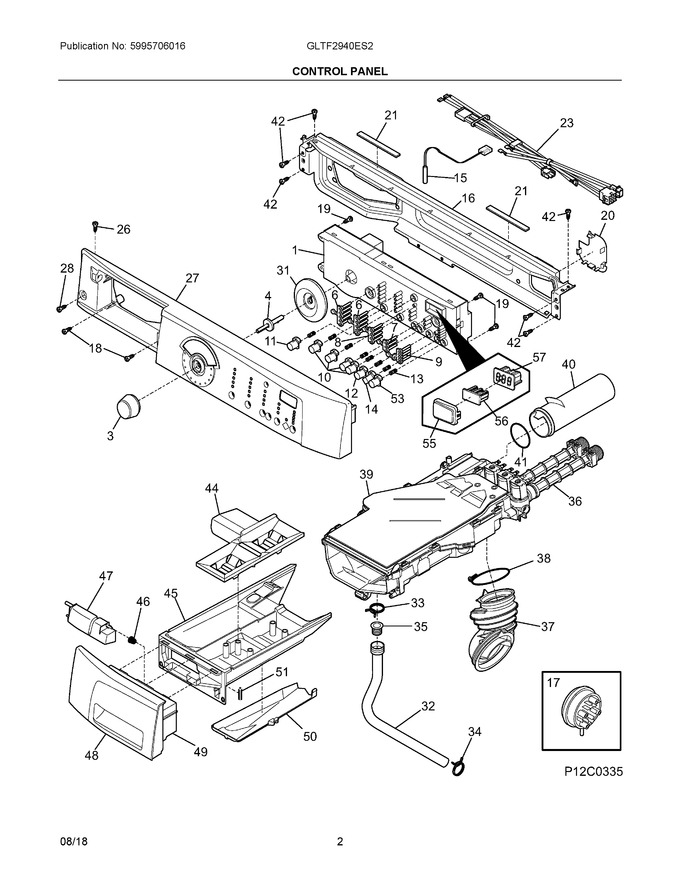

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137006000		Control Board, Printed Circuit, With Housing   (Replaces: 134523103)				$ 296.40
3	134471500		Knob, Program				$ 58.38
4	134347700		Pin, Program Knob				$ 19.74
6	134429100		Light Pipe, Array, 1 Row Of 5				$ 130.57
7	134429300		Light Pipe, Array, 3 Row Of 3				$ 11.34
8	134429200		Light Pipe, Array, 2 Row Of 4				$ 12.97
9	134429400		Light Pipe, Array, 4 Start Group				$ 13.39
10	134447100		Push Button, #1				$ 14.18
11	134447500		Push Button, #5				$ 33.13
12	134447400		Push Button, #4				$ 11.97
13	134349400		Spring, Push Button				$ 9.14
14	134447201		Push Button, #2				$ 12.58
15	134399300		Switch, Reed				$ 46.62
16	134364800		Bracket, Top Front				$ 70.98
17	134762000		Switch, Pressure, Analog   (Replaces: 134407800)			Immediately	$ 111.28
18	131302800		Screw, 10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
20	134452600		Cover, Hole Plug		Appelez-nous	-
21	134407900		Dampener, Vibration				$ 17.01
23	134436600		Wiring Harness, Controls				$ 212.63
26	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
27	134442700		Panel, Control Console				$ 411.55
28	131205300		Screw, 10-16 X 0.750			Immediately	$ 12.10
31	134441300		Bezel, Knob Flange				$ 57.07
32	134371700		Hose, Disp-to-bellows		Appelez-nous	-
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Clamp, Hose, Bellows   (Replaces: 134446300)				$ 10.63
35	134371800		Gasket, Disp Hose Seal				$ 1.58
36	134371210		Valve, Dispenser, Short Tubes, Without Ntc				$ 181.46
37	134372300		Hose, Disp-to-tub				$ 58.32
38	134372400		Clamp, Tub Hose				$ 64.49
39	134409320		Housing, Dispenser, W/valve, Cover   (Replaces: 134446120)			Immediately	$ 382.23
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
44	134370200		Cover, Dispenser			Immediately	$ 41.11
45	134370000		Drawer, Dispenser			Immediately	$ 74.11
46	134349500		Spring, Door Latch				$ 7.71
47	134386500		Latch, Dispenser, Slider Lock				$ 35.44
48	134465800		Handle, Dispenser, Front				$ 106.31
49	134386200		Frame, Drawer Handle				$ 107.21
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 382.23
51	131373800		Magnet				$ 48.62
53	134447301		Push Button, #3				$ 35.70
55	134428900		Lens, Digital Display				$ 60.59
56	134503400		Light Pipe, Digital Display		Appelez-nous	-
57	134503300		Display, Digital				$ 52.24
36A	134371220		Valve, Dispenser, Short Tubes, With Ntc			Immediately	$ 65.71
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134543100		Wiring Harness, Main				$ 284.29
NIA	134528700		Spacer, Console		Appelez-nous	-
NIB	134178901		Screw, Quadrex Ph, 8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
