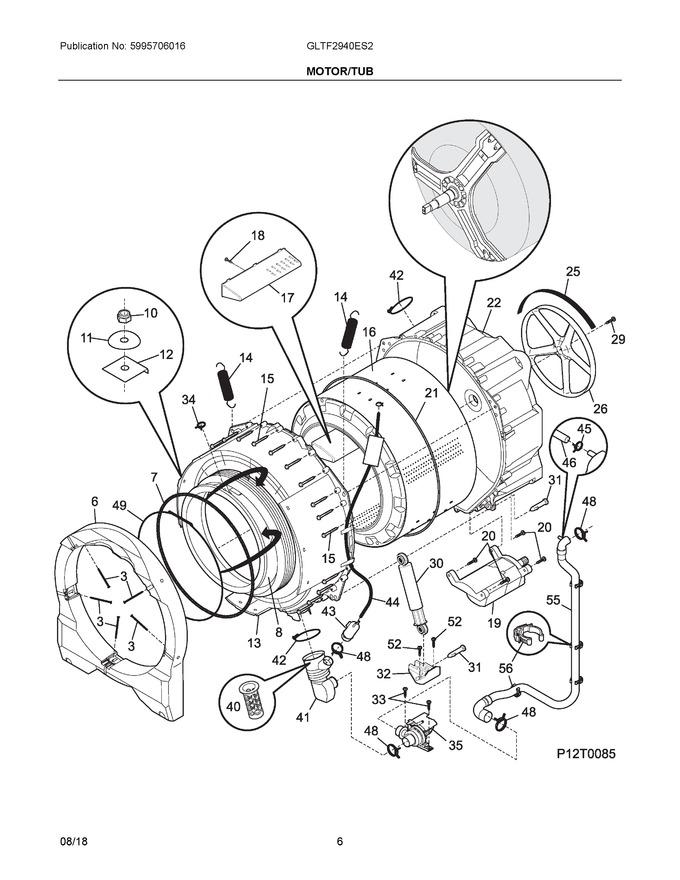

07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt, Carriage, 1/4-20 X 2.60				$ 13.74
6	134362200		Counterweight, Front, One Piece				$ 195.83
7	134365300		Spring, Bellows Clamp, Retainer				$ 61.66
8	134515300		Bellows, Door Boot   (Replaces: 134365200)			Immediately	$ 343.18
10	131304700		Nut, Hex, 1/4-20 Unc-2b, (2)				$ 8.14
11	131276900		Washer, Bellville, Spring Steel				$ 21.69
12	134430600		Plate, Counterweight				$ 10.40
13	134362000		Shell, Tub, Front				$ 417.85
14	134362800		Spring Assy, Suspension				$ 111.25
15	134408300		Screw, Hex Head, 6.5 X 51 Mm		Appelez-nous	-
16	134360900		Drum Assy, Spin Basket		Appelez-nous	-
17	134509600		Vane Kit, Drum				$ 162.31
18	131302800		Screw, 10-16ab X 0.375			Immediately	$ 26.58
19	137043000		Motor, 120 V   (Replaces: 134362500)			Immediately	$ 430.65
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 12.05
21	5304520351		O-ring, Tub   (Replaces: 134361900)				$ 98.32
22	134507120		Shell, Outer Tub, Rear, W/bearing, Seal   (Replaces: 134509500)				$ 566.20
25	134051001		Belt, Drive, Poly-v, 6-rib		Appelez-nous	-
26	134362600		Pulley, Drum Drive, Large, Rear		Appelez-nous	-
29	134408400		Screw, 10.9 Class, M10 X 25 Mm				$ 17.72
30	5304485917		Shock Absorber, Dual Stage   (Replaces: 134560400)			Immediately	$ 45.44
31	131268300		Pin, Shock Mtg.			Immediately	$ 12.76
32	134363200		Bracket, Shock Mtg.				$ 19.13
33	134160900		Screw, Quadrex, 10-16ab X 0.750				$ 12.05
34	5304464772		Clamp, Hose, Bellows   (Replaces: 134446300)				$ 10.63
35	137221600		Pump, Drain   (Replaces: 134051200)			Immediately	$ 189.21
40	134565200		Filter, Pump		Appelez-nous	-
41	134455900		Hose, Drain, Tub>pump, Coin Trap			Immediately	$ 70.85
42	134737300		Clamp   (Replaces: 131333101)				$ 20.13
43	137089000		Chamber, Air   (Replaces: 134369000)				$ 129.00
44	137089000		Hose, Air Pressure   (Replaces: 134369900)				$ 129.00
45	131306202		Clamp, Hose				$ 11.63
46	134436100		Syphon Brake, Hose, With Clamps				$ 6.56
48	5304536802		Clamp, Pump To Trap   (Replaces: 131306234)			Immediately	$ 4.01
49	134527100		Clamp, Bellows, Spring Held			Immediately	$ 44.55
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
55	134458300		Hose, Internal Drain		Appelez-nous	-
56	134369800		Fastener, Hose Clip, (3)				$ 9.29
NI	134454400		Energy Guide		Appelez-nous	-
NI	134541700		Technical Data Sheet, Wiring Diagram		Appelez-nous	-
NIA	134261300		Clip, Drain Hose, Push-mount				$ 12.05
