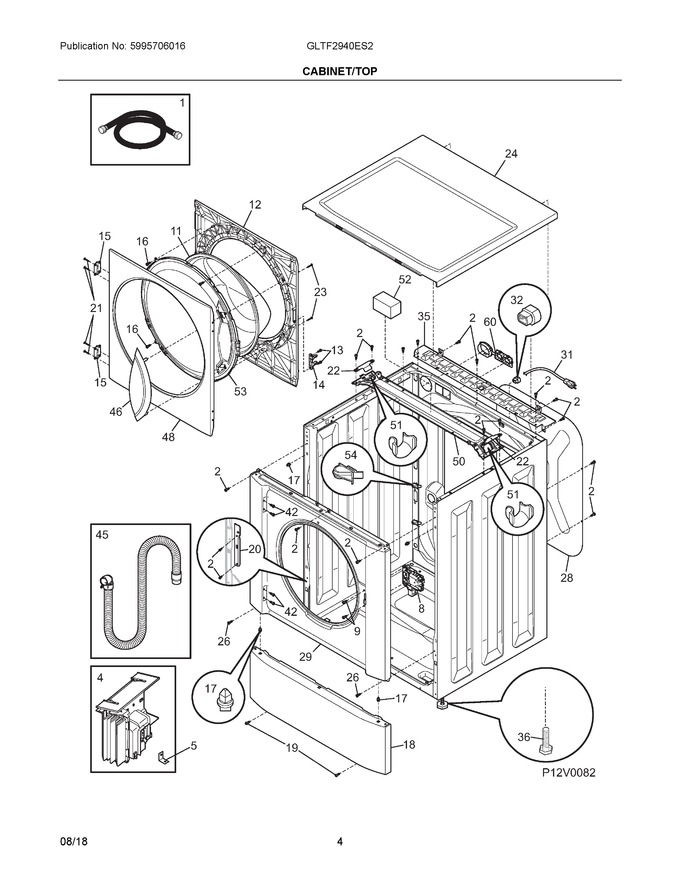

03 - Cabinet/top


03 - Control Panel


04 - Motor/tub


05 - Cabinet/top


05 - Wiring Diagram


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose, Water Inlet, 4 Ft., Hose & Washer		Appelez-nous	-
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134409902		Control Board, Motor		Appelez-nous	-
5	134522900		Bracket, Angle, Motor Control				$ 13.01
8	131763256		Door Lock/switch Assy   (Replaces: 131763200)			Immediately	$ 146.76
9	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
11	134366400		Panel, Door Glass				$ 313.91
12	134507301		Panel, Inner Door		Appelez-nous	-
13	131302901		Screw, 10-16 X 0.750				$ 4.96
14	131763302		Striker, Door/lock/sw   (Replaces: 131763310)			Immediately	$ 35.08
15	134412400		Hinge, Door				$ 55.13
16	134178901		Screw, 8-18ab X 0.455				$ 14.89
17	134408700		Clip, Assembly				$ 8.35
18	134321702		Panel, Front Service, White				$ 139.33
19	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
20	134434901		Bracket, Ls Panel, Reinforcement				$ 43.73
21	137361500		Screw, Comb Flat Head, 8-18ab X 0.75   (Replaces: 134424700)				$ 7.79
22	134364700		Retainer, Spring Steel		Appelez-nous	-
23	134522100		Screw, #12 Flat Head, 10-14p, Quad Drive				$ 18.90
24	134365000		Panel, Work Top, White		Appelez-nous	-
26	134521600		Screw, Hex Washer Head, M5 0.8 X 15				$ 2.63
28	134364300		Panel, Service Access, Rear				$ 54.39
29	134363300		Panel, Cabinet Front, White		Appelez-nous	-
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
32	5303209428		Bushing, Power Cord				$ 17.01
35	134365100		Bracket, Top Support, Rear				$ 150.99
36	134548800		Leveling Leg, Screw, Plastic			Immediately	$ 30.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 14.89
45	134369400		Hose, Drain, External		Appelez-nous	-
46	134472202		Handle, Door				$ 256.04
48	134412103		Panel, Outer Door, White		Appelez-nous	-
50	134364600		Bracket, Tub Suspension				$ 60.64
51	134562100		Protector, Tub Brkt, Spring Hook, (2)				$ 9.56
52	131931202		Dampener, Vibration, Foam				$ 17.35
53	134507403		Adapter, Door Glass Ring				$ 412.97
54	134364900		Fastener, Wire Harn Clip		Appelez-nous	-
60	134372000		Grommet, Dispenser, Back Panel				$ 30.47
NI	134596200		Shipping Support Kit				$ 160.18
NI	134591500		Plug Assy, Shipping Holes, Back				$ 46.78
NIA	134606800		Wiring Harness, Door Switch				$ 113.69
NIA	134434900		Bracket, Rs Panel, Reinforcement		Appelez-nous	-
NIA	134547600		Wiring Harness, Motor Control				$ 70.09
