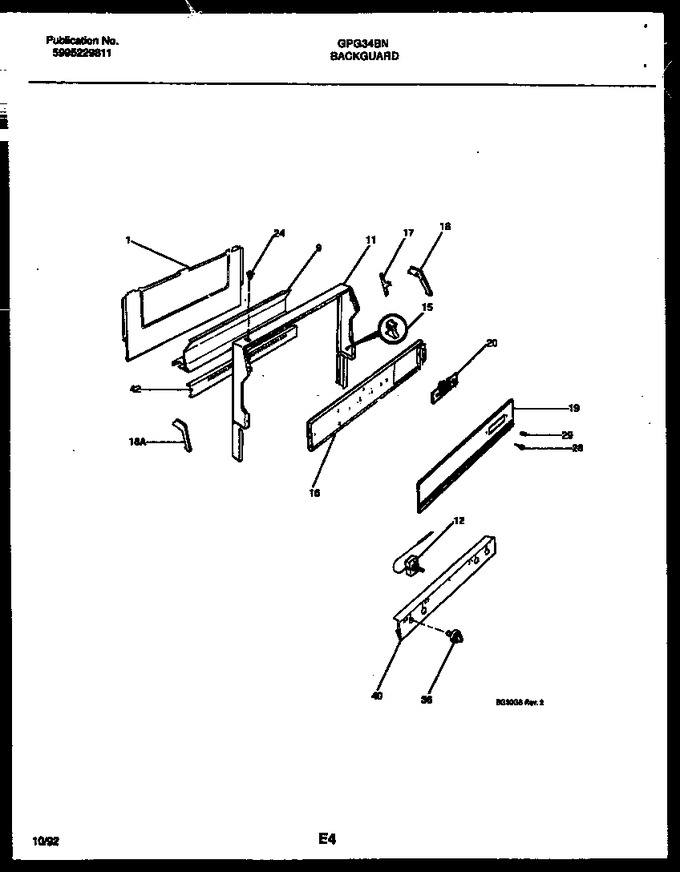

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 5303210934 | Trim-splasher |
|
- | |||||
| 11 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | Cap, End (rh) |
|
- | |||||
| 19 | 5303272039 | Panel-control, Glass |
|
- | |||||
| 20 | 5303269513 | Clock/timer, Electronic |
|
- | |||||
| 24 | 5303208662 | Switch-oven Light, Rocker |
|
- | |||||
| 28 | 3202376 | Button-eoc Control, Olive Gray, (8) |
|
- | |||||
| 29 | 3202378 | Knob-eoc Control, Olive Gray |
|
$ 49.82 | |||||
| 36 | 5303210935 | Knob-top Valve (4) |
|
- | |||||
| 40 | 5303210895 | Panel, Manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| 18A | 3131229 | Cap, End (lh) |
|
- |
