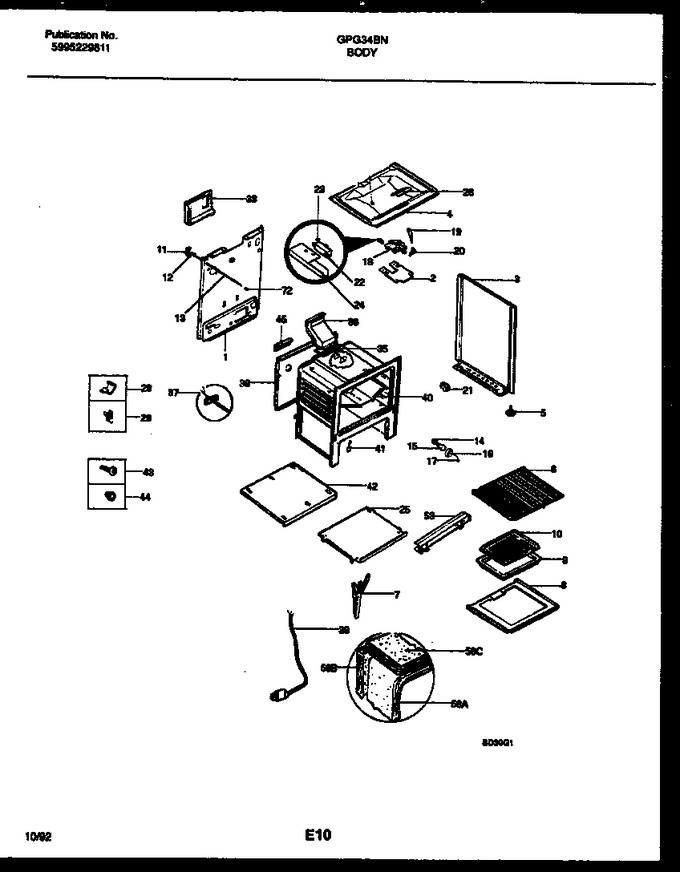

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 36 | 3131931 | Flue |
|
- | |||||
| 37 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 38 | 316014301 | Shield-heat |
|
- | |||||
| 39 | 5304534377 | Cord-electric Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 40 | 3200836 | Shield-heat Baffle |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 42 | 5303270104 | Shield-bake-burner |
|
- | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1-7/16 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45 | 08068018 | Shield-wire |
|
- | |||||
| 53 | 5303271047 | Shield-main Front |
|
- | |||||
| 72 | 5303285692 | Cover-light Rod |
|
- | |||||
| 39A | 08067961 | Fastener-power Cord |
|
- | |||||
| 53A | 08067973 | Insulation, Main Front (non-illustrated) |
|
$ 51.74 | |||||
| 58A | 3200833 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 3204582 | Insulation, Oven Back |
|
- | |||||
| 58C | 3131304 | Insulation, Oven Top |
|
- |
