SELECT A DIAGRAM

02 - Backguard


03 - Burner, Manifold And Gas Control


04 - Body Parts


05 - Body Parts


06 - Cooktop And Drawer Parts


07 - Door Parts

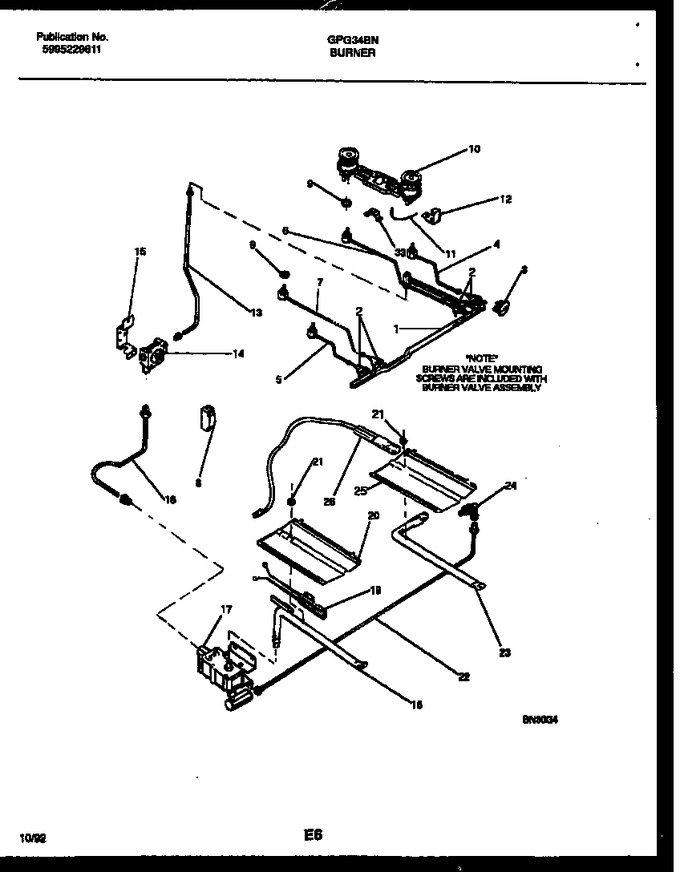

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271375		Manifold Pipe		Appelez-nous	-
2	316020401		Valve-top Burner, 3 Position, (4), W/screw				$ 138.86
3	316032000		Switch-igniter, (4)				$ 58.70
4	5303283665		Tube-burner, Rf		Appelez-nous	-
5	5303283666		Tube-burner, Lf		Appelez-nous	-
6	5303283667		Tube-burner, Rr		Appelez-nous	-
7	5303283668		Tube-burner, Lr		Appelez-nous	-
8	5303200669		Spark Module		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	5303131147		Burner-top-double		Appelez-nous	-
11	3200276		Igniter-top Burner, Base, (2)		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
13	5303208495		Tube, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	316054801		Regulator-pressure		Appelez-nous	-
15	08067934		Bracket-regulator		Appelez-nous	-
16	5303208494		Tube-valve To Rgltr		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5303208493		Tube-valve To Mixer		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	5303208640		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
33	3200277		Bracket Burner Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
