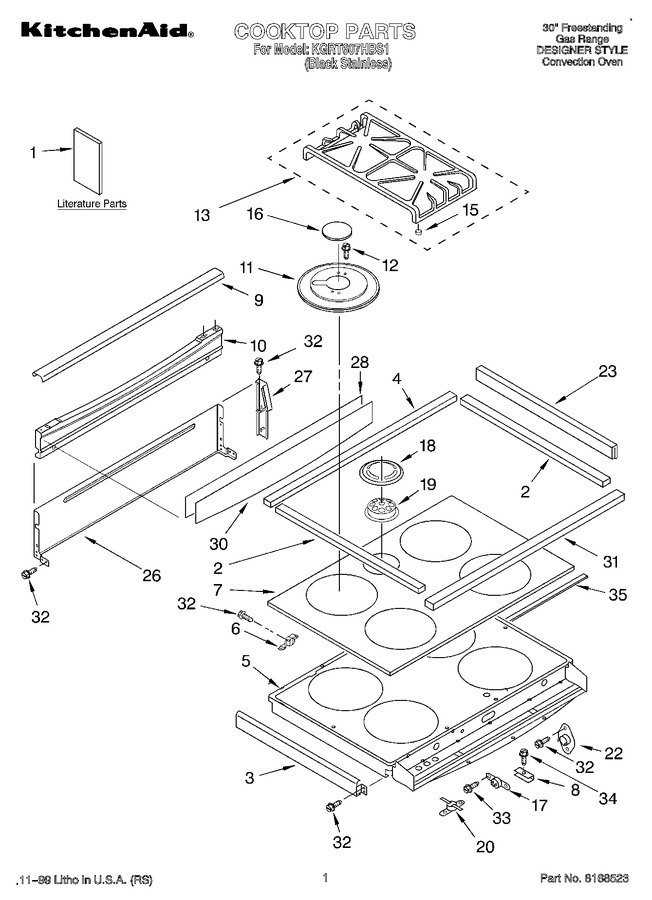

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753562		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook)		Appelez-nous	-
1	LIT9753620		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9752686		Literature Parts (smart & Easy Guide)		Appelez-nous	-
1	LIT9753621		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT9753632		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752775		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9753848		Literature Parts (lp Installation Instructions)		Appelez-nous	-
2	9754101		Gasket, Cooktop		Appelez-nous	-
3	9751276PB		Trim, Cooktop (black, Left)		Appelez-nous	-
3	9751275PB		Trim, Cooktop (black (right))		Appelez-nous	-
4	9781614		Gasket, Cooktop				$ 47.02
5	9753603		Support, Burner		Appelez-nous	-
6	9752003		Washer, Pivot		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	9753606CB		Cooktop, Glass		Appelez-nous	-
8	9750821		Support Clips (4)		Appelez-nous	-
9	9751632		Cover, Light		Appelez-nous	-
10	9781896GB		Backsplash		Appelez-nous	-
11	9753600GB		Bezel, Burner (14k Lf)		Appelez-nous	-
11	9753602GB		Bezel, Burner (12k Rr)		Appelez-nous	-
11	9753601GB		Bezel, Burner (6k Rf-lr)		Appelez-nous	-
12	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
13	9753616GB		Grate, 2 Burner		Appelez-nous	-
15	814323		Pad, Grate (4)   (Replaces: 9752638)			Immediately	$ 10.28
16	9753939GB		Cap, Burner (14k Lf)				$ 49.08
16	WP3191898		Cap, Burner (6k Rf-lr)   (Replaces: 3191898)				$ 60.86
16	WP3191904		Cap, Burner (12k Rr)   (Replaces: 3191904)				$ 157.85
17	341196		Thermo-disc				$ 33.17
18	9751271GB		Cap, Vent		Appelez-nous	-
19	9751366		Cap, Vent		Appelez-nous	-
20	WP9759944		Fuse, Bi-metal   (Replaces: 9751984)			Immediately	$ 121.57
22	9752006		Thermostat, Fixed				$ 130.03
23	9752034		Seal, Rubber (2)		Appelez-nous	-
26	9751664		Cover, Backsplash		Appelez-nous	-
27	9781885FB		Endcap, Backsplash ((right Hand))		Appelez-nous	-
27	9781884FB		Endcap, Backsplash (black, Left)		Appelez-nous	-
28	9753292		Glass, Backsplash				$ 140.48
30	9754071		Panel, Backguard		Appelez-nous	-
31	9751478		Gasket, Console		Appelez-nous	-
32	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
33	3149333		Screw, 10-16 X 1/2				$ 5.33
34	9751871		Screw, 10-16 X 1		Appelez-nous	-
35	9754134		Pad, Cooktop (88mm)		Appelez-nous	-
35	9754135		Pad, Cooktop (200mm)		Appelez-nous	-
