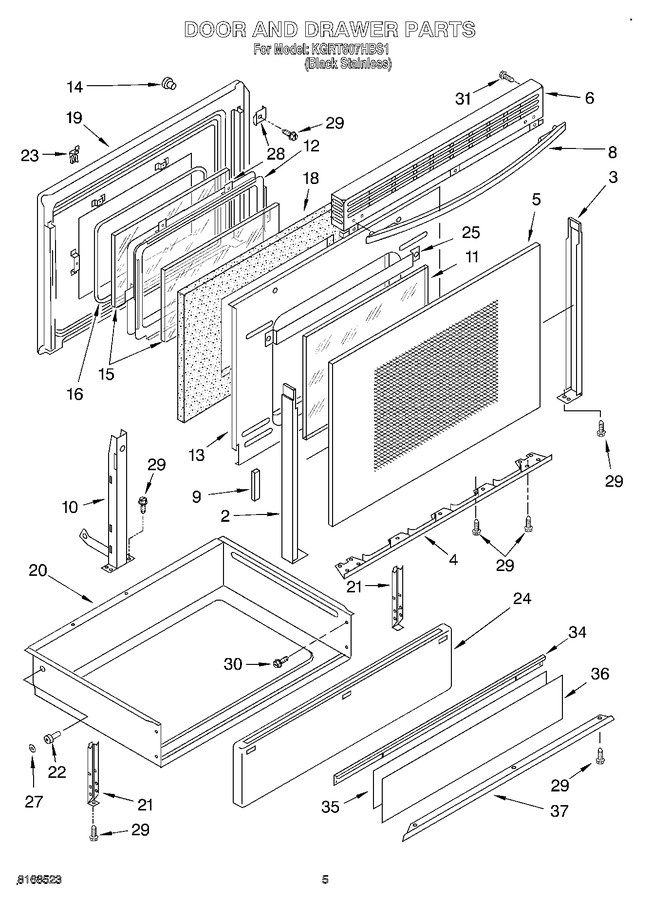

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9750631PB		Trim, Door-left		Appelez-nous	-
3	9750632PB		Trim, Door-right		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
5	9754041		Glass, Door		Appelez-nous	-
6	9753498GB		Vent, Door		Appelez-nous	-
6	9781490		Seal, Door		Appelez-nous	-
6	9781659		Gasket, Vent		Appelez-nous	-
8	9780523PB		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
11	9781592		Baffle, Glass		Appelez-nous	-
12	9781602		Frame, Window		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Door (2)   (Replaces: 9781593)				$ 116.35
16	9781587		Seal, Glass		Appelez-nous	-
18	9754006		Insulation		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9750257		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
23	9750676		Retainer, Door		Appelez-nous	-
24	9750569PB		Front, Drawer		Appelez-nous	-
25	9750693		Channel, Heat		Appelez-nous	-
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
28	9781502		Retainer, Glass		Appelez-nous	-
29	9780265		Screw		Appelez-nous	-
30	9780272		Screw		Appelez-nous	-
31	WPW10001180		Screw   (Replaces: 9781072)				$ 7.23
34	9750614PB		Trim, Drawer-top		Appelez-nous	-
35	9753329		Spacer		Appelez-nous	-
36	9754062		Panel, Drawer		Appelez-nous	-
37	9750613PB		Trim, Drawer-btm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
