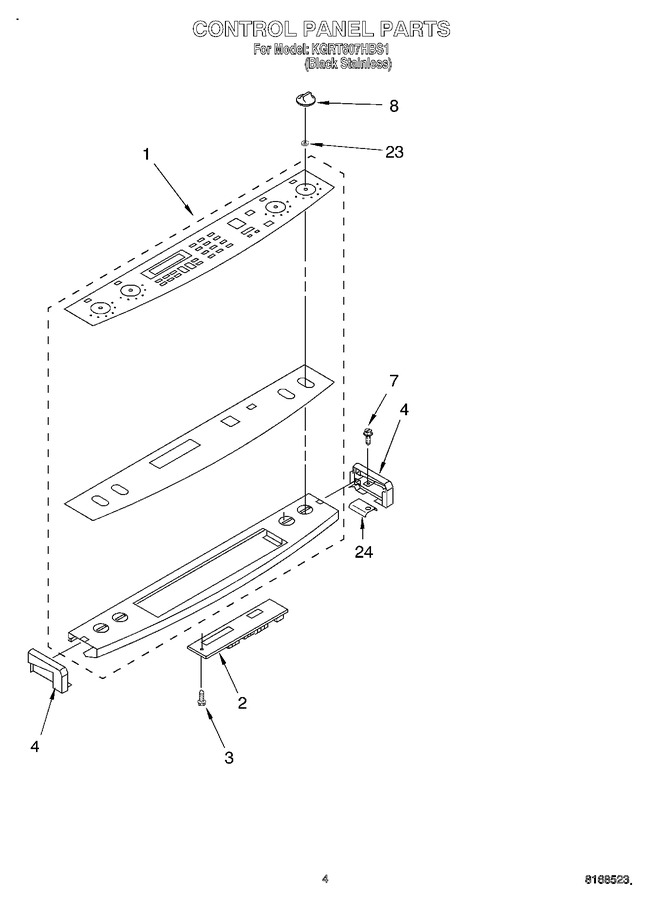

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754038CB		Console, Glass		Appelez-nous	-
2	3191106		Timer, Electronic		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751279FB		End Cap (left Hand)		Appelez-nous	-
4	9751280FB		End Cap (black, Right)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	W10405147		Knobs, Control   (Replaces: 9751199FF)				$ 87.20
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
24	9781488		Spacer, Bottom Trim		Appelez-nous	-
