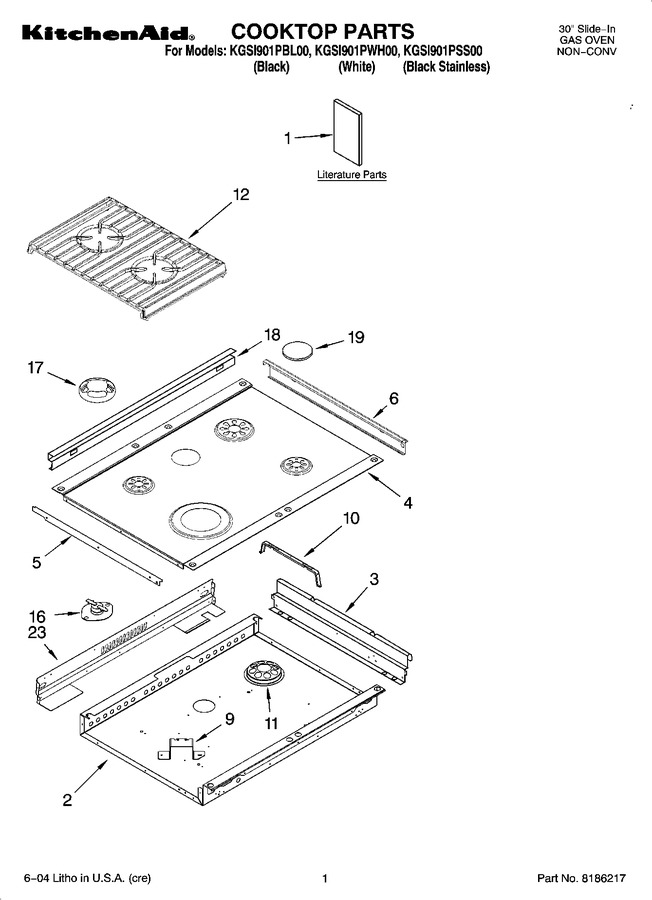

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757666 | Tech Sheet |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 9757447 | Installation Instructions |
|
- | |||||
| 1 | 9757452 | Use & Care Guide |
|
- | |||||
| 2 | 9759896 | Burner Box |
|
- | |||||
| 3 | 4454023 | Bracket, Mounting |
|
- | |||||
| 3 | 3179776 | Screw |
|
- | |||||
| 4 | 9757804WH | Cooktop (white) |
|
- | |||||
| 4 | 9757804BL | Cooktop (black) |
|
- | |||||
| 5 | 9756781WH | Wall, Side Cktp (white) |
|
- | |||||
| 5 | 9756781BL | Wall, Side Cktp (black) |
|
- | |||||
| 5 | 3179776 | Wall, Side Cktp (screw) |
|
- | |||||
| 6 | 4453875SS | Trim-cktop, Si (s.steel Lh) |
|
- | |||||
| 6 | 4453875WH | Trim-cktop, Si (white Lh) |
|
- | |||||
| 6 | 3179776 | Trim-cktop, Si (screw) |
|
- | |||||
| 6 | 4453875BL | Trim-cktop, Si (black Lh) |
|
- | |||||
| 6 | 4453870WH | Trim-cktop, Si (white Rh) |
|
- | |||||
| 6 | 4453870BL | Trim-cktop, Si (black Rh) |
|
- | |||||
| 6 | 4453870SS | Trim-cktop, Si (s.steel Rh) |
|
- | |||||
| 9 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 9 | 3192811 | Bracket, Burner |
|
- | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 10 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 11 | 9756505BL | Dome Cap, Vent |
|
- | |||||
| 12 | 9759932BL | Grate, Burner (black) |
|
- | |||||
| 12 | 9759932MG | Grate, Burner (mouse Grey) |
|
- | |||||
| 16 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 16 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 17 | 9757766BL | Vent, Center (black) |
|
- | |||||
| 17 | 9757766WH | Vent, Center (white) |
|
- | |||||
| 18 | 4453865WH | Trim, Extension (white) |
|
- | |||||
| 18 | 4453865BL | Trim, Extension (black) |
|
- | |||||
| 18 | 4453865SS | Trim, Extension (s.steel) |
|
- | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 19 | WP3191905 | Cap, Burner 12.5k (rr) Mouse Grey (Replaces: 3191905) |
|
$ 77.99 | |||||
| 19 | 9753939GB | Cap, Burner (14k Lf) (black) |
|
$ 49.08 | |||||
| 19 | 9753939GS | Cap, Burner (14k Lf) (mouse Grey) |
|
$ 41.57 | |||||
| 19 | WP3191904 | Cap, Burner 12.5k Black (Replaces: 3191904) |
|
$ 157.85 | |||||
| 19 | WP3191898 | Cap, Burner 6k Black (Replaces: 3191898) |
|
$ 60.86 | |||||
| 19 | 3191899 | Cap, Burner 6k (rf, Lr) Mouse Grey |
|
$ 31.21 | |||||
| 19 | WP8273343 | Cap, Burner 6k Espresso (Replaces: 8273343) |
|
$ 77.91 | |||||
| 23 | 3179776 | Screw (4) |
|
- | |||||
| 23 | 9759627 | Cover, Cktp Rear |
|
$ 67.22 |
