Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

1 9752980 Shield, Flame Special Order $ 38.26

2 4453625 Element, Broil Appelez-nous -
3 WP3195996 Grill, Broiler   (Replaces: 4457277) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 4457276) Special Order $ 279.38

5 9757779 Fitting, Broiler Special Order $ 130.68

5 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

6 WPW10179152 Rack, Oven   (Replaces: 4448717) In-Stock Immediately $ 107.65

8 WPW10145744 Pan Support, Bake   (Replaces: 4453957) Special Order $ 183.56

9 8191123 Electrode, Bake   (Replaces: 4454048) Special Order $ 238.90

9 W11684507 Screw   (Replaces: 3196385) Special Order $ 12.23

10 8191123 Burner, Bake Log   (Replaces: 4454047) Special Order $ 238.90

10 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

11 9752737 Shield, Oven Special Order $ 22.04

11 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

12 4453984 Shield, Bake Flame Appelez-nous -
12 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

13 W11684512 Screw   (Replaces: 3400080) Special Order $ 12.69

13 WP9763716 Valve, Assy   (Replaces: 4453999) In-Stock Immediately $ 481.13

14 9756831 Tube, Broil Special Order $ 155.53

15 9757700 Burner, Broil Appelez-nous -
16 WP8054129 Ignitor, Broil   (Replaces: 8054129) In-Stock Immediately $ 123.43

16 W11684507 Screw   (Replaces: 3196385) Special Order $ 12.23

17 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

17 4454009 Cover, Ignitor Special Order $ 5.31

18 WPW10272546 Pan, Oven Bottom   (Replaces: 4453920) In-Stock Immediately $ 190.73

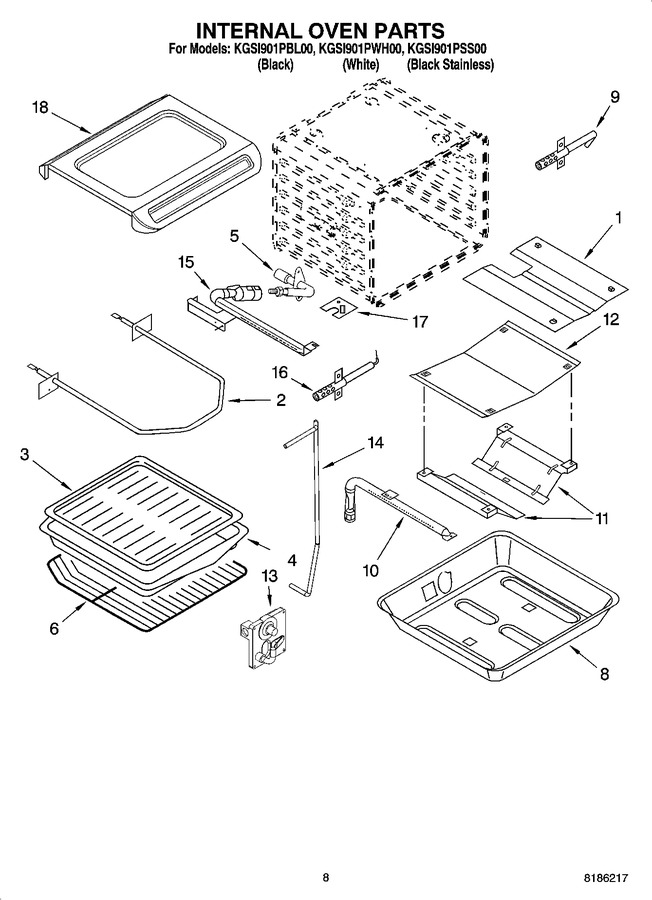

    View Diagram in Separate Window     Print Icon   Print Part List
