SELECT A DIAGRAM

01 - Cooktop Parts

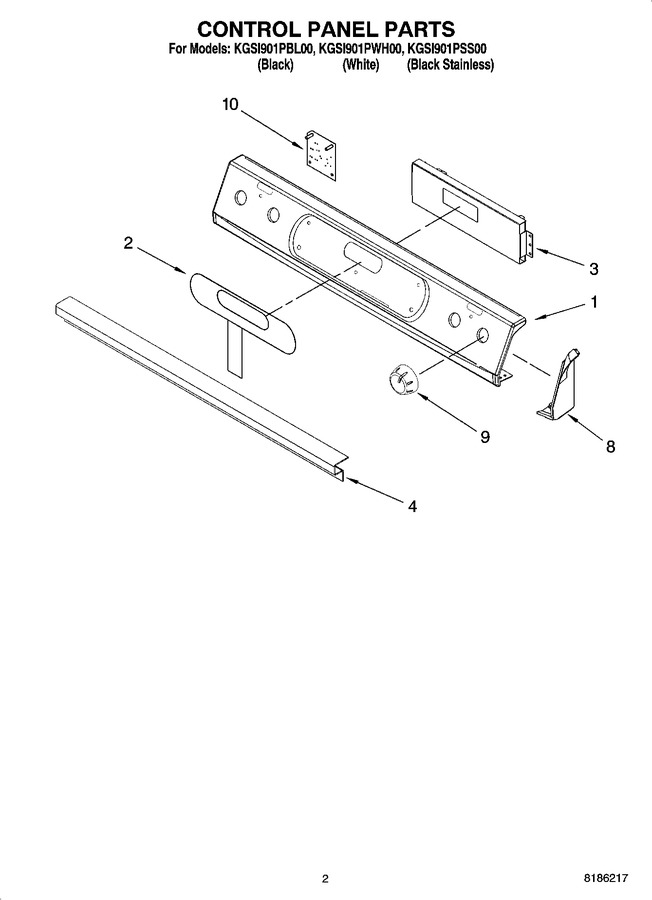

02 - Control Panel Parts


03 - Oven Parts


04 - Door And Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4453931WH		Control Panel (white)				$ 173.16
1	4453931BL		Control Panel (black)				$ 173.16
1	4453931SS		Control Panel (s.steel)				$ 182.84
2	9756555BL		Membrane Switch (black)		Appelez-nous	-
2	WP3400832		Membrane Switch (screw)   (Replaces: 3400832)			Immediately	$ 6.98
2	9756555WH		Membrane Switch (white)		Appelez-nous	-
3	9780271		Screw		Appelez-nous	-
3	9760009		Control, Migration		Appelez-nous	-
4	3179776		Screw (3)		Appelez-nous	-
4	9757119		Bracket, Console		Appelez-nous	-
8	4453726CM		Endcap (s.steel Lh)		Appelez-nous	-
8	4453726BL		Endcap (black Lh)		Appelez-nous	-
8	4453727CM		Endcap (s.steel Rh)		Appelez-nous	-
8	4453727WH		Endcap (white Rh)		Appelez-nous	-
8	4453727BL		Endcap (black Rh)		Appelez-nous	-
8	3196172		Endcap (screw)			Immediately	$ 11.55
8	4453726WH		Endcap (white Lh)		Appelez-nous	-
9	4453911WH		Knob (white)				$ 5.52
9	8285604		Knob (silver)				$ 6.23
9	4453911BL		Knob (black)		Appelez-nous	-
10	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 354.47

    View Diagram in Separate Window       Print Part List
