01 - Cooktop And Control Panel Parts

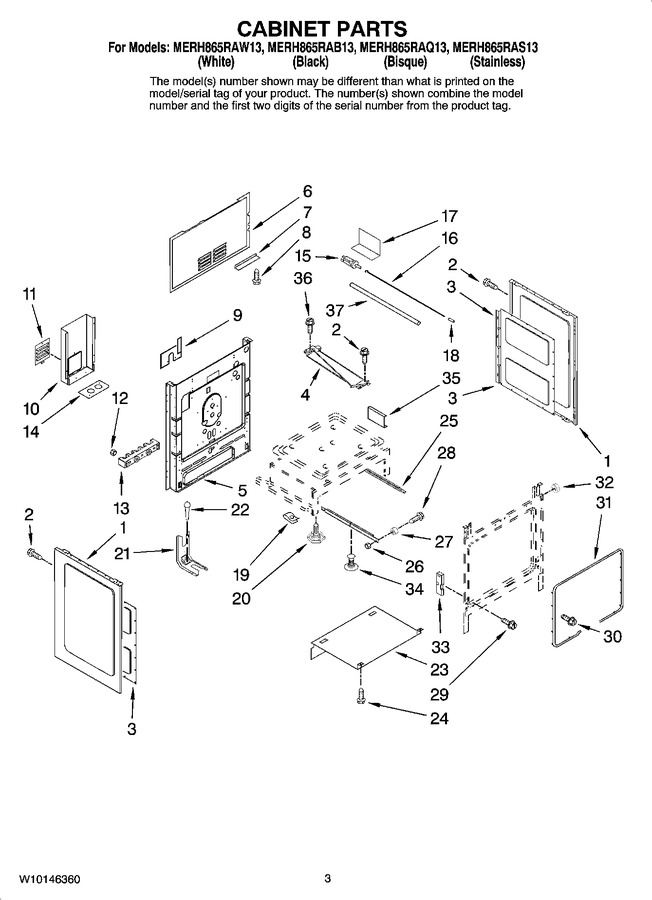

02 - Cabinet Parts
03 - Oven Parts
04 - Door/drawer Parts (except Stainless)
05 - Door/drawer Parts (stainless Only)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008709 | Panel, Side (white) |
|
- | |||||
| 1 | 74008710 | Panel, Side (black) |
|
- | |||||
| 1 | 74008708 | Panel, Side (bisque) |
|
- | |||||
| 2 | W11233072 | Screw (6) (Replaces: 74004208) |
|
Immediately | $ 12.62 | ||||
| 3 | 74008701 | Retainer, Side |
|
- | |||||
| 4 | 74008720 | Latch Assembly |
|
- | |||||
| 4 | W10792991 | Latch, Door Lock (Replaces: 8002P104-60) | 11 |
|
$ 305.63 | ||||
| 5 | 74008699 | Main Back |
|
- | |||||
| 6 | 74009651 | Cover, Main Wire |
|
- | |||||
| 7 | 74008762 | Bottom, Wire Cover |
|
- | |||||
| 8 | W11233072 | Screw 8ab 1/2 (2) (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 9 | 74008759 | Insulator, Cord |
|
- | |||||
| 10 | 74008760 | Cover, Wire (lwr) |
|
- | |||||
| 11 | 740083400 | Panel, Access |
|
- | |||||
| 12 | WP7103P027-60 | Nut, Term.block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 13 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 14 | 3605F146-51 | Plate, Conduit |
|
$ 6.06 | |||||
| 15 | 74008703 | Switch, Door |
|
$ 127.11 | |||||
| 16 | 74008706 | Rod, Door Switch |
|
- | |||||
| 17 | 74008704 | Insulator, Shield |
|
- | |||||
| 18 | 74008707 | Bumper |
|
$ 8.73 | |||||
| 19 | 74008835 | Clip, Retainer |
|
$ 8.95 | |||||
| 20 | W11665456 | Leg, Leveling (Replaces: 74002373) |
|
Immediately | $ 25.30 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) |
|
Immediately | $ 4.69 | ||||
| 22 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P352-60) |
|
$ 26.33 | |||||
| 23 | 74008689 | Shield, Heat |
|
- | |||||
| 24 | W11233072 | Screw, 8ab 1/2 (4) (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 25 | 74008687 | Runner, Drawer |
|
- | |||||
| 26 | 74005230 | Nut, Lock (8-32) |
|
$ 12.02 | |||||
| 27 | WP74004078 | Roller, Drawer (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 28 | 74005231 | Shaft, Roller |
|
$ 9.23 | |||||
| 29 | WP4159193 | Screw (4) (Replaces: Y7101P11260) |
|
$ 4.29 | |||||
| 30 | 74008798 | Screw, Shoulder(6) |
|
$ 12.03 | |||||
| 31 | W11562931 | Gasket (Replaces: 74008696) |
|
Immediately | $ 78.98 | ||||
| 32 | 74008690 | Spacer, Side Pnl. |
|
$ 19.49 | |||||
| 33 | WP74010551 | Receiver, Hinge (Replaces: 74008697) |
|
Immediately | $ 12.60 | ||||
| 34 | 74008688 | Stop, Drawer |
|
$ 5.02 | |||||
| 35 | 74011187 | Bracket, Oven |
|
- | |||||
| 36 | 74003975 | Screw (black) (2) |
|
$ 12.02 | |||||
| 37 | 74008705 | Rod, Door Sleeve |
|
- |
