SELECT A DIAGRAM

01 - Cooktop And Control Panel Parts


02 - Cabinet Parts


03 - Oven Parts

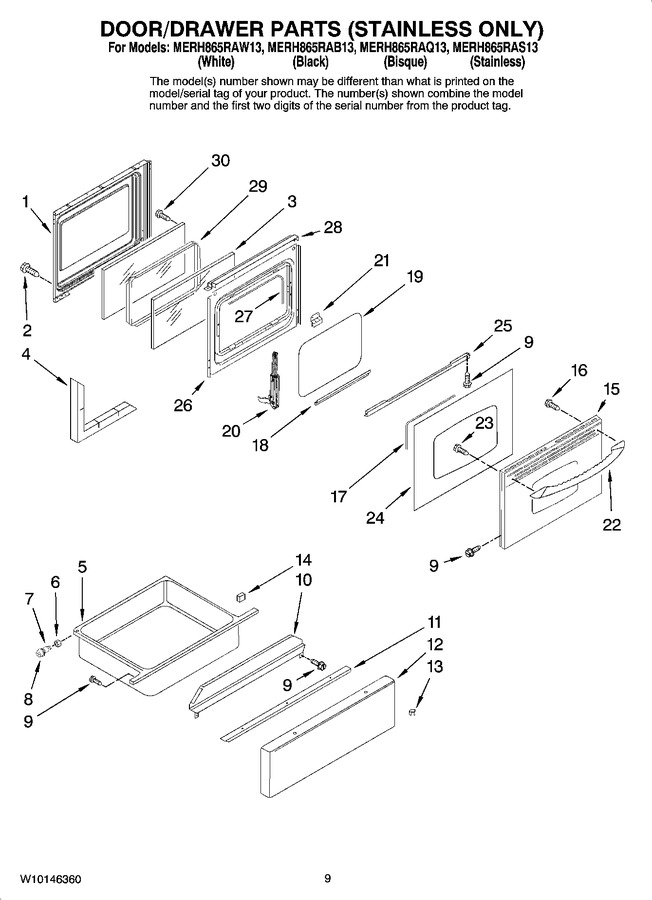

04 - Door/drawer Parts (except Stainless)


05 - Door/drawer Parts (stainless Only)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008926		Lining, Door		Appelez-nous	-
2	WPY706189		Screw   (Replaces: Y706189)			Immediately	$ 6.47
3	74003645		Glass, Inner			Immediately	$ 162.53
4	74003647		Insulation,door		Appelez-nous	-
5	74008337		Drawer, Storage				$ 171.37
6	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)				$ 4.00
7	74005231		Shaft, Roller (2)				$ 9.23
8	WP74004078		Roller (2)   (Replaces: 74004078)			Immediately	$ 10.70
9	W11233072		Screw 8ab 1/2 (3)   (Replaces: 74001530)			Immediately	$ 12.62
10	74009517		Shield, Heat		Appelez-nous	-
11	74008909		Handle, Drawer				$ 32.96
12	12002306		Panel, Drawer   (Replaces: 74009516)				$ 253.71
13	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.27
14	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
15	74008951		Panel, Door (stl)		Appelez-nous	-
16	74011772		Screw, Handle				$ 5.18
17	WP74009029		Gasket, Window   (Replaces: 74009029)			Immediately	$ 145.22
18	74008745		Retainer, Glass		Appelez-nous	-
19	W10134835		Glass, Door		Appelez-nous	-
20	74010546		Hinge, Door			Immediately	$ 77.34
21	74008746		Retainer, Glass		Appelez-nous	-
22	74011771		Handle, Door		Appelez-nous	-
23	74011772		Screw, Handle				$ 5.18
24	74008855		Glass, Door (stl)		Appelez-nous	-
25	74009028		Bracket, Glass		Appelez-nous	-
26	74008744		Baffel, Door		Appelez-nous	-
27	74008917		Gasket, Window				$ 25.50
28	74009027		Baffel, Door		Appelez-nous	-
29	74003644		Frame, Glass		Appelez-nous	-
30	WPY706189		Screw   (Replaces: Y706189)			Immediately	$ 6.47
