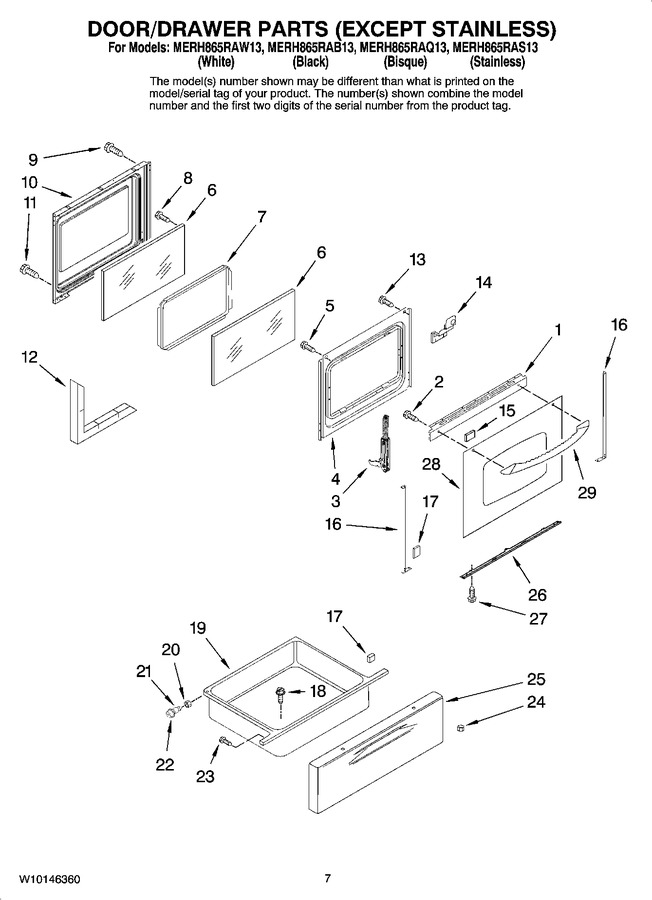

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10144691		Trim, Door Top (bisque)		Appelez-nous	-
1	74008746		Trim, Door Top (black)		Appelez-nous	-
1	W10144690		Trim, Door Top (white)		Appelez-nous	-
2	WP98008544		Screw, Handle (white (3))   (Replaces: 74009540)				$ 11.89
2	WP98008545		Screw, Handle (black (3))   (Replaces: 74009537)				$ 15.94
2	WP74009541		Screw, Handle (bisque (3))   (Replaces: 74009541)				$ 6.26
3	74010546		Hinge, Door (2)			Immediately	$ 77.34
4	3601F380-51		Baffel, Retainer				$ 25.83
5	W11233072		Screw 8ab 1/2 (6)   (Replaces: 74001530)			Immediately	$ 12.62
6	74003645		Glass, Inner (2)			Immediately	$ 162.53
7	74003644		Frame, Glass Inner		Appelez-nous	-
8	Y7061899		Screw, Frame		Appelez-nous	-
9	WP74006515		Screw, Mounting   (Replaces: 74011674)				$ 7.29
10	74008926		Lining, Door		Appelez-nous	-
11	Y7061895		Screw, Hinge		Appelez-nous	-
12	74003647		Insulation,door		Appelez-nous	-
13	WPY706189		Screw (8)   (Replaces: Y706189)			Immediately	$ 6.47
14	74009412		Bracket, Handle (left)		Appelez-nous	-
14	74009413		Bracket, Handle (right)		Appelez-nous	-
15	WP74004224		Tape, White   (Replaces: 74004224)				$ 10.53
16	74010562		Trim, Door Side (bisque)		Appelez-nous	-
16	74010561		Trim, Door Side (white)		Appelez-nous	-
16	74010560		Trim, Door Side (black)		Appelez-nous	-
17	74009025		Tape, Dbl Sided (black)				$ 8.60
17	WP74009014		Tape, Dbl Sided (white)   (Replaces: 74009014)				$ 6.91
18	WP7101P072-60		Screw (2)   (Replaces: 7101P072-60)				$ 6.77
19	74008333		Drawer, Storage		Appelez-nous	-
20	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.27
21	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
22	74005231		Shaft, Roller				$ 9.23
23	W11233072		Screw 8ab 1/2 (2)   (Replaces: 74001530)			Immediately	$ 12.62
24	WPW10131078		Nut, Lock (2)   (Replaces: 7103P139-60)				$ 4.00
25	74008756		Panel, Drawer (bisque)		Appelez-nous	-
25	74008755		Panel, Drawer (white)		Appelez-nous	-
25	74008885		Panel, Drawer (black)		Appelez-nous	-
26	74008757		Trim, Door Bottom (white)		Appelez-nous	-
26	74008758		Trim, Door Bottom (bisque)		Appelez-nous	-
26	74008745		Trim, Door Bottom (black)		Appelez-nous	-
27	WP4159193		Screw 10-24x5/16   (Replaces: 7101P282-60)				$ 4.29
28	74009018		Glass, Door (black)		Appelez-nous	-
28	74008681		Glass, Door (white)				$ 262.79
28	74008682		Glass, Door (bisque)		Appelez-nous	-
29	74011777		Handle, Door (black)				$ 210.30
29	WP74011675		Handle, Door (white)   (Replaces: 74011675)				$ 226.94
29	74011779		Handle, Door (bisque)		Appelez-nous	-
