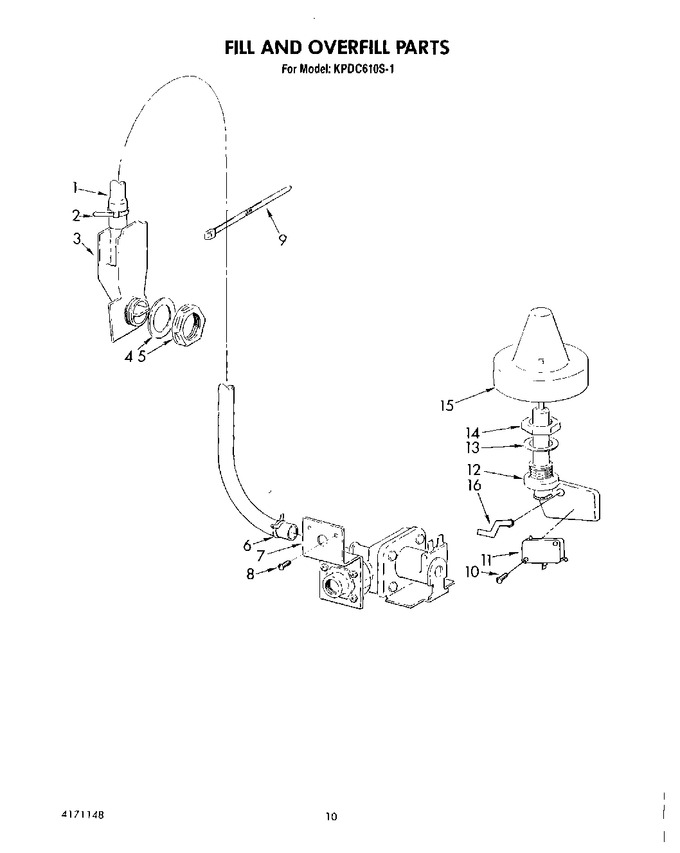

07 - Fill And Overfill


08 - Upper Wash And Rinse


09 - Frame And Tank


10 - Upper Rack And Track


11 - Lower Rack


12 - Door And Latch


13 - Caster Unit


14 - Top And Panel


15 - Fill Hose And Cord


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4163236		Hose, Flexible (fill Valve To Air Gap)		Appelez-nous	-
2	4162103		Clamp, Hose		Appelez-nous	-
3	4163273		Air Gap, Fill Assembly (includes Items 1 & 2)		Appelez-nous	-
4	4161545		Gasket, Rubber		Appelez-nous	-
5	4161667		Nut (fill Air Gap)		Appelez-nous	-
6	4161507		Clamp, Hose		Appelez-nous	-
7	WP4171000		Fill Valve Assembly   (Replaces: 4171000)				$ 183.01
8	WP693304		Screw 10-16 X 1/2   (Replaces: 4159468)				$ 7.04
9	4162935		Strap (flexible Connector To Tank)		Appelez-nous	-
10	4159424		Screw, 4-40 X 3/4		Appelez-nous	-
11	4171117		Switch, Overfill Control		Appelez-nous	-
12	4161732		Standpipe, Overfill		Appelez-nous	-
13	WP8531743		Gasket, Flat   (Replaces: 4161670)			Immediately	$ 42.54
14	4161596		Nut, Standpipe		Appelez-nous	-
15	4162407		Float & Retainer Assembly		Appelez-nous	-
16	4171116		Lever, Overflow Switch		Appelez-nous	-
