SELECT A DIAGRAM

Diagram for 01 - Door Panel
01 - Door Panel

Diagram for 02 - Blower
02 - Blower

Diagram for 03 - Control Panel, Lit/optional
03 - Control Panel, Lit/optional

Diagram for 04 - Pump And Motor
04 - Pump And Motor

Diagram for 05 - Lower Washarm And Strainer
05 - Lower Washarm And Strainer

Diagram for 06 - Heater
06 - Heater

Diagram for 07 - Fill And Overfill
07 - Fill And Overfill

Diagram for 08 - Upper Wash And Rinse
08 - Upper Wash And Rinse

Diagram for 09 - Frame And Tank
09 - Frame And Tank

Diagram for 10 - Upper Rack And Track
10 - Upper Rack And Track

Diagram for 11 - Lower Rack
11 - Lower Rack

Diagram for 12 - Door And Latch
12 - Door And Latch

Diagram for 13 - Caster Unit
13 - Caster Unit

Diagram for 14 - Top And Panel
14 - Top And Panel

Diagram for 15 - Fill Hose And Cord
15 - Fill Hose And Cord


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4161659 Cover, Wiring Harness Appelez-nous -
2 4159513 Washer Appelez-nous -
3 WP693304 Screw, 10-16 X 1/2   (Replaces: 4159390) Special Order $ 7.04

4 4161613 Latch Mechanism Assembly Appelez-nous -
5 4162145 Insulation, Switch Appelez-nous -
6 4162508 Inner Door Assembly Appelez-nous -
7 4159594 Insulation, Inner Door Appelez-nous -
8 4159275 Screw, 10-32 X 5/16 Appelez-nous -
9 4161592 Bracket, L.h. Door Stop Appelez-nous -
10 4159121 Plug Button Appelez-nous -
11 4160355 Bearing, Door Stop Insert Special Order $ 7.71

12 4162949 Vapor Barrier, Inner Door (includes Item No. 41) Appelez-nous -
13 4161957 Bracket, Spring Mounting (l.h.) Appelez-nous -
13 4161958 Bracket, Spring Mounting (r.h.) Appelez-nous -
15 WP3390631 Screw, 10-32 X 3/8   (Replaces: 4159184) Special Order $ 7.04

16 4161594 Bracket, R.h. Door Stop Appelez-nous -
19 4161587 Bracket, R.h. Hinge Special Order $ 77.90

20 WP4162629 Spring, Door Co-balance   (Replaces: 4162629) Special Order $ 31.08

21 4161563 Pin, Hinge Appelez-nous -
22 4161585 Clip, Hinge Pin Retaining Appelez-nous -
23 4162113 Screw Appelez-nous -
24 4161619 Gasket, Detergent Dispenser Appelez-nous -
25 4159373 Screw, 8-18 X 1/2 Appelez-nous -
26 4162568 Bimetal Assembly Special Order $ 45.13

27 4161295 Baffle, Lower Special Order $ 38.85

28 W11233072 Screw, 8-18 X 1/2   (Replaces: 4159397) In-Stock Immediately $ 12.62

30 4161309 Detergent Dispenser & Gasket Assy. (115 V., 60 Hz.) (incls. Item 24) Appelez-nous -
32 4159594 Washer (rubber) Appelez-nous -
33 4162151 Screw, 10-32 X 1/2 Appelez-nous -
34 4162536 Fill Hole Plug Assembly (includes Item 35) Appelez-nous -
35 4162496 Washer, Fill Hole Plug Special Order $ 36.50

36 4161667 Nut, Rinse Agent Dispenser Appelez-nous -
37 4161545 Gasket, Rinse Agent Dispenser Appelez-nous -
38 4162522 Rinse Agent Dispensing Valve Appelez-nous -
39 4161589 Bracket, L.h. Hinge Appelez-nous -
41 4162950 Vapor Barrier, Corner (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

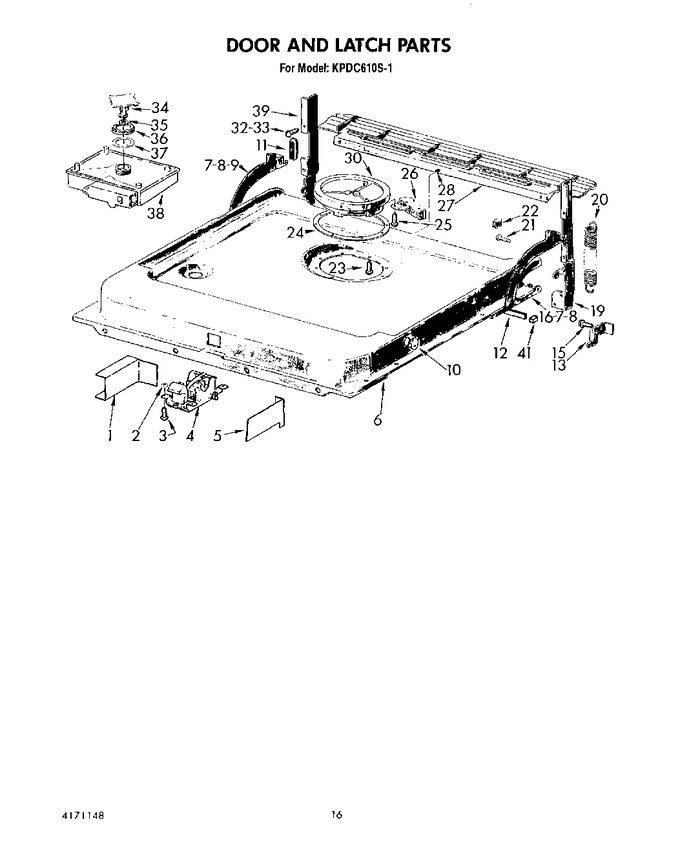

Diagram for KPDC610S1
