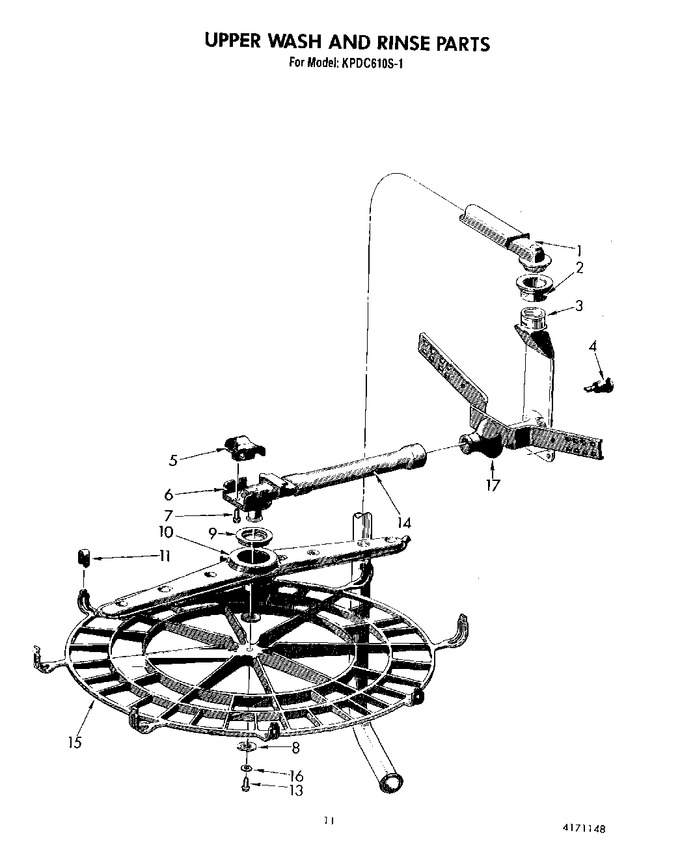

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4162664 | Tube & Connector Assembly |
|
- | |||||
| 2 | 4162723 | Connector, Vertical Conduit |
|
- | |||||
| 3 | 4162655 | Conduit, Vertical |
|
- | |||||
| 4 | 4162609 | Retainer, Conduit |
|
- | |||||
| 5 | 4171540 | Retainer, Manifold |
|
- | |||||
| 6 | 4162466 | Manifold, Upper Arm |
|
- | |||||
| 7 | 4161737 | Screw |
|
- | |||||
| 8 | 4162625 | Bearing, Arm (bottom) |
|
- | |||||
| 9 | 4162491 | Bearing, Arm (top) |
|
- | |||||
| 10 | 9740878 | Wash/rinse Arm Assembly |
|
- | |||||
| 11 | 4162501 | Clip, Arm Guard |
|
- | |||||
| 13 | 4161737 | Screw |
|
- | |||||
| 14 | 4161617 | Tube (manifold To Receiver) |
|
- | |||||
| 15 | 4162469 | Guard, Arm |
|
- | |||||
| 16 | 4162624 | Washer |
|
- | |||||
| 17 | 4161581 | Arm, Receiver |
|
- |
