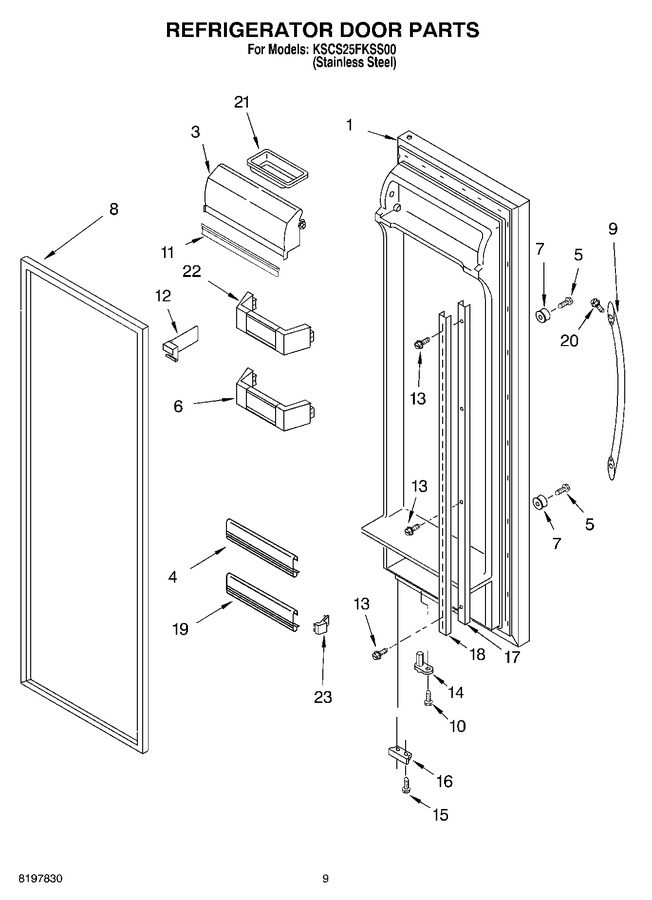

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214482S		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2256010		Trim, Door Shelf				$ 49.25
5	WP488163		Screw   (Replaces: 488208)				$ 6.79
6	2199986		Bin, Door		Appelez-nous	-
7	2203690		Stud, Handle		Appelez-nous	-
8	2221310		Door Gasket, Magnetic (black)		Appelez-nous	-
9	2188635S		Handle (stainles Steel)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	2159124		Gasket		Appelez-nous	-
12	2195497		Divider, Bin		Appelez-nous	-
13	WPW10141645		Screw   (Replaces: 8281210)				$ 6.90
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	2214451		Bracket, Door Stop (black)		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	98654		Screw		Appelez-nous	-
21	2165792		Butter, Dish		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 11.30
