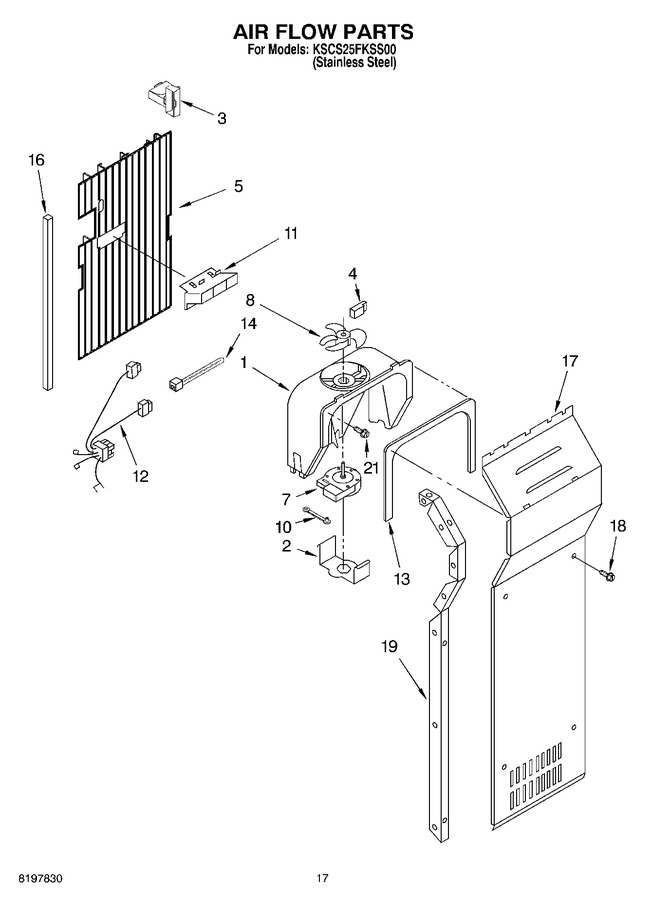

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 100.77
2	2155590		Retainer Fan Motor				$ 5.83
3	2210746		Air Scoop		Appelez-nous	-
4	2208184		Block, Fan Scroll		Appelez-nous	-
5	2199931		Air Duct Freezer		Appelez-nous	-
7	2208939		Fan Motor		Appelez-nous	-
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
10	8201663		Fan Grommet   (Replaces: 2208959)				$ 136.52
11	2182146		Duct, Icemaker				$ 88.84
12	2214359		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.01
14	WP2205813		Wire Tie   (Replaces: 2205813)				$ 6.95
16	2210780		Gasket		Appelez-nous	-
17	2203122		Cover, Evaporator		Appelez-nous	-
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
19	2199923		Evaporator, Cover Rail (left)		Appelez-nous	-
19	2199922		Evaporator, Cover Rail (right)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
